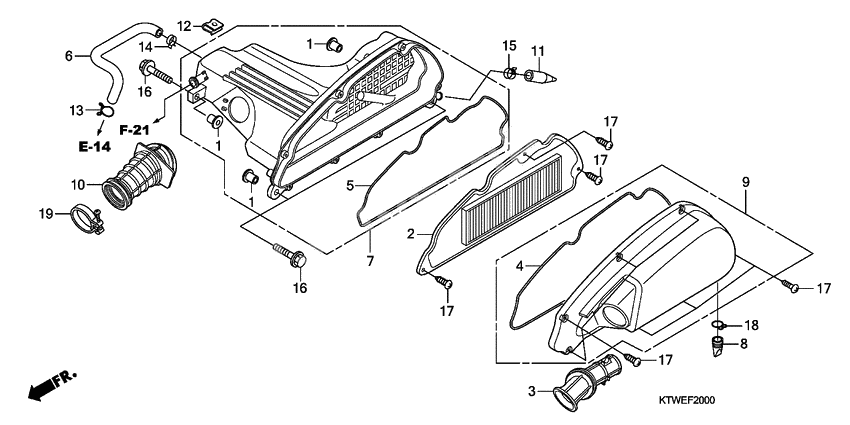

Воздушный фильтр
Воздушный фильтр
Element comp (Ref #2)
2
Part #17210-KTW-900
Канал (Ref #3)
3
Part #17212-KTW-900
Seal (Ref #4)
4
Part #17213-KTW-900
Seal, air cleaner (Ref #5)
5
Part #17218-KFG-000
TUBE (Ref #6)
6
Part #17218-KTW-900
Корпус подшипника приводного вала правого (Ref #7)
7
Part #17225-KTW-900
TUBE (Ref #8)
8
Part #17234-KCW-871
Крышка (Ref #9)
9
Part #17235-KTW-900
TUBE (Ref #10)
10
Part #17254-KTW-900
Трубка дренажная (Ref #11)
11
Part #17261-KSV-J00
Nut, clip (6mm) (Ref #12)
12
Part #90305-GEE-710
CLIP (Ref #13)
13
Part #90646-657-000
CLAMP (Ref #14)
14
Part #90682-SA0-671
Clamp, tube (d14.5) (Ref #15)
15
Part #91406-MS8-000
Bolt-washer (6x30) (Ref #16)
16
Part #93404-0603000
Bolt-washer (6x30) (Ref #16)
16
Part #93404-0603000
Bolt-washer (6x30) (Ref #16)
16
Part #93404-0603000
Bolt-washer (6x30) (Ref #16)
16
Part #93404-0603000
Clip, tube (c12) (Ref #18)
18
Part #9500280000
BAND (Ref #19)
19
Part #95018-52320
