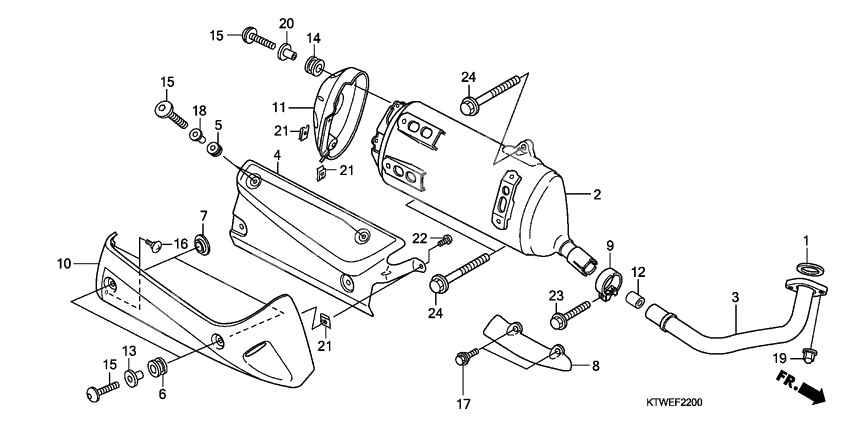

Exhaust muffler
Exhaust muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN4-920
Muffler comp. (Ref #2)
2
Part #18300-KTW-901
Pipe comp (Ref #3)
3
Part #18301-KTW-900
Protector a (Ref #4)
4
Part #18318-KTW-900
RUBBER (Ref #5)
5
Part #18345-MBT-610
RUBBER (Ref #6)
6
Part #18346-KTW-900
COLLAR (Ref #7)
7
Part #18347-KTW-900
PROTECTOR (Ref #8)
8
Part #18370-KTW-900
Band, ex. pipe (Ref #9)
9
Part #18373-KAB-000
Protector sub assy. (Ref #10)
10
Part #18380-KTW-900
Крышка (Ref #11)
11
Part #18381-KTW-900
Gasket, muffler (Ref #12)
12
Part #18391-MN1-670
COLLAR (Ref #13)
13
Part #19107-415-000
Rubber, rr (Ref #14)
14
Part #80107-GE0-710
Screw, special, 5mm (Ref #16)
16
Part #90104-KZ3-B00
BOLT (Ref #17)
17
Part #90107-KTW-900
Collar, reflector setting (Ref #18)
18
Part #90129-463-770
Nut, cap (8mm) (Ref #19)
19
Part #90304-ME1-670
Washer, fr (Ref #20)
20
Part #90501-124-000
Болт (Ref #22)
22
Part #93500-050-120-A
Bolt,flange,8x35 (Ref #23)
23
Part #95701-0803502
Болт (Ref #24)
24
Part #95701-1005007
Болт (Ref #24)
24
Part #95701-1005007
Болт (Ref #24)
24
Part #95701-1005007
Болт (Ref #24)
24
Part #95701-1005007
