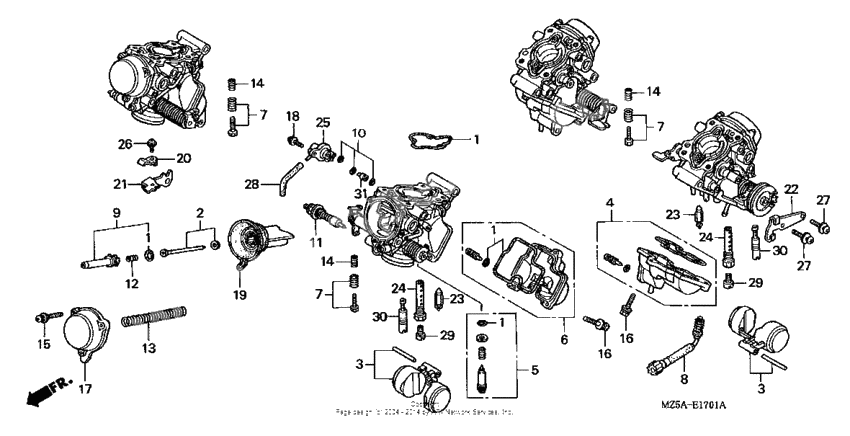

Carburetor components
Carburetor components
Needle set, jet (Ref #2)
2
Part #16012-MZ5-600
FLOAT SET (Ref #3)
3
Part #16013-MY1-000
FLOAT SET (Ref #3)
3
Part #16013-MY1-000
FLOAT SET (Ref #3)
3
Part #16013-MY1-000
FLOAT SET (Ref #3)
3
Part #16013-MY1-000
Chamber set, float (Ref #4)
4
Part #16015-MV9-670
Screw set (Ref #5)
5
Part #16016-MAS-670
Chamber set, float (Ref #6)
6
Part #16023-MV9-670
Screw set (Ref #8)
8
Part #16029-MZ5-600
Plate set, valve (Ref #9)
9
Part #16037-MY5-850
Gasket set (Ref #10)
10
Part #16041-MZ5-600
Valve set, starter (Ref #11)
11
Part #16046-MV9-670
Пружина (Ref #12)
12
Part #16051-MV4-000
Пружина (Ref #13)
13
Part #16051-MZ5-600
Screw, pan (Ref #15)
15
Part #16080-MV4-000
Bolt-washer (Ref #16)
16
Part #16082-PH9-005
Bolt-washer (Ref #16)
16
Part #16082-PH9-005
Bolt-washer (Ref #16)
16
Part #16082-PH9-005
Bolt-washer (Ref #16)
16
Part #16082-PH9-005
Верх (Ref #17)
17
Part #16107-MZ5-671
Болт (Ref #18)
18
Part #16108-MW0-750
Piston, vacuum (Ref #19)
19
Part #16111-MZ5-600
Plate, stay (Ref #20)
20
Part #16119-MZ2-600
Plate, stay (Ref #21)
21
Part #16119-MZ5-600
Stay, wire (Ref #22)
22
Part #16119-MZ5-670
Клапан (Ref #23)
23
Part #16155-MN9-004
Клапан (Ref #23)
23
Part #16155-MN9-004
Клапан (Ref #23)
23
Part #16155-MN9-004
Клапан (Ref #23)
23
Part #16155-MN9-004
Holder, needle jet (Ref #24)
24
Part #16165-MN4-013
Holder, needle jet (Ref #24)
24
Part #16165-MN4-013
Holder, needle jet (Ref #24)
24
Part #16165-MN4-013
Holder, needle jet (Ref #24)
24
Part #16165-MN4-013
Valve assy., air cut (Ref #25)
25
Part #16510-MZ2-650
Screw-washer (Ref #26)
26
Part #93892-0401000
Screw-washer, 5x10 (Ref #27)
27
Part #93892-0501000
Screw-washer, 5x10 (Ref #27)
27
Part #93892-0501000
Screw-washer, 5x10 (Ref #27)
27
Part #93892-0501000
Screw-washer, 5x10 (Ref #27)
27
Part #93892-0501000
Bulk hose (3.5x1000) (Ref #28)
28
Part #95005-350-0120M
Jet, main (#102) (Ref #29)
29
Part #99101-GHB1020
Jet, main (#102) (Ref #29)
29
Part #99101-GHB1020
Jet, main (#102) (Ref #29)
29
Part #99101-GHB1020
Jet, main (#102) (Ref #29)
29
Part #99101-GHB1020
Жиклер (Ref #30)
30
Part #99103-MT20400
Жиклер (Ref #30)
30
Part #99103-MT20400
Жиклер (Ref #30)
30
Part #99103-MT20400
Жиклер (Ref #30)
30
Part #99103-MT20400
Jet, slow air (#110) (Ref #31)
31
Part #99108-MW01102
-
-
Цена: 2 100.00 р.
Доступно: 0
-
