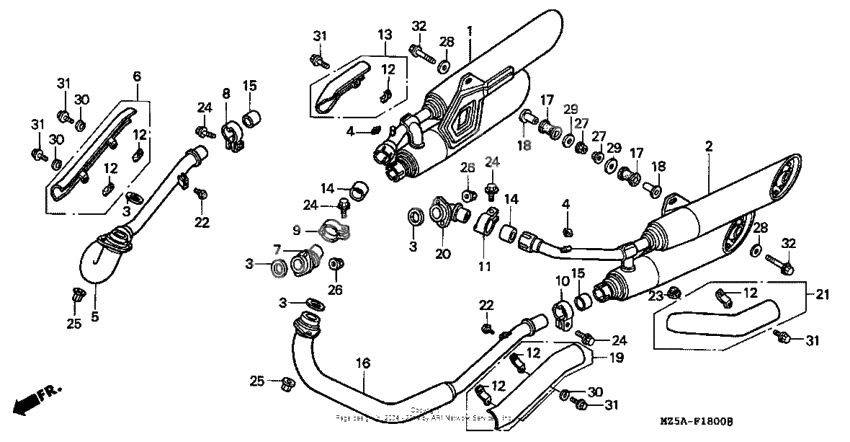

Muffler
Muffler
Muffler, r. ex. (Ref #1)
1
Part #18100-MZ5-003
Muffler, l. ex. (Ref #2)
2
Part #18200-MZ5-003
RUBBER (Ref #4)
4
Part #18293-ME9-000
RUBBER (Ref #4)
4
Part #18293-ME9-000
RUBBER (Ref #4)
4
Part #18293-ME9-000
RUBBER (Ref #4)
4
Part #18293-ME9-000
Pipe, r. fr. ex. (Ref #5)
5
Part #18320-MZ5-981
Cvr, r. fr. ex. pipe (Ref #6)
6
Part #18340-MZ5-003
Joint, r. rr. cyl hd (Ref #7)
7
Part #18350-MZ5-003
Band, r. ex. pipe (Ref #8)
8
Part #18373-ML4-003
Band, ex. pipe (Ref #9)
9
Part #18373-KAB-000
Band, l. ex. pipe (Ref #10)
10
Part #18374-ML4-003
Band, l. ex. pipe (Ref #11)
11
Part #18374-MN1-670
Cvr, r. rr. ex. pipe (Ref #13)
13
Part #18380-MZ5-003
Gasket, muffler (Ref #14)
14
Part #18391-MB0-891
Gasket, muffler (Ref #14)
14
Part #18391-MB0-891
Gasket, muffler (Ref #14)
14
Part #18391-MB0-891
Gasket, muffler (Ref #14)
14
Part #18391-MB0-891
Packing,muffler (Ref #15)
15
Part #18391-ML8-000
Packing,muffler (Ref #15)
15
Part #18391-ML8-000
Packing,muffler (Ref #15)
15
Part #18391-ML8-000
Packing,muffler (Ref #15)
15
Part #18391-ML8-000
Pipe, l. fr. ex. (Ref #16)
16
Part #18420-MZ5-981
RUBBER (Ref #17)
17
Part #18421-MB0-000
RUBBER (Ref #17)
17
Part #18421-MB0-000
RUBBER (Ref #17)
17
Part #18421-MB0-000
RUBBER (Ref #17)
17
Part #18421-MB0-000
COLLAR (Ref #18)
18
Part #18422-MB0-000
COLLAR (Ref #18)
18
Part #18422-MB0-000
COLLAR (Ref #18)
18
Part #18422-MB0-000
COLLAR (Ref #18)
18
Part #18422-MB0-000
Cvr, l. fr. ex. pipe (Ref #19)
19
Part #18440-MZ5-003
Joint, l. rr. cyl hd (Ref #20)
20
Part #18450-MZ5-003
Cvr, l. rr. ex. pipe (Ref #21)
21
Part #18480-MZ5-003
Rubber, stopper (Ref #22)
22
Part #50501-KT7-810
Rubber, stopper (Ref #22)
22
Part #50501-KT7-810
Rubber, stopper (Ref #22)
22
Part #50501-KT7-810
Rubber, stopper (Ref #22)
22
Part #50501-KT7-810
Rubber, battery box (Ref #23)
23
Part #83618-GF0-751
Nut, special (6mm) (Ref #25)
25
Part #90304-HB3-771
Гайка (Ref #27)
27
Part #94050-08070
Гайка (Ref #27)
27
Part #94050-08070
Гайка (Ref #27)
27
Part #94050-08070
Гайка (Ref #27)
27
Part #94050-08070
Washer, plain, 8mm (Ref #28)
28
Part #9410308000
Washer, plain, 8mm (Ref #28)
28
Part #9410308000
Washer, plain, 8mm (Ref #28)
28
Part #9410308000
Washer, plain, 8mm (Ref #28)
28
Part #9410308000
Шайба (Ref #29)
29
Part #94103-08700
Шайба (Ref #29)
29
Part #94103-08700
Шайба (Ref #29)
29
Part #94103-08700
Шайба (Ref #29)
29
Part #94103-08700
Болт (Ref #32)
32
Part #95801-0805002
Болт (Ref #32)
32
Part #95801-0805002
Болт (Ref #32)
32
Part #95801-0805002
Болт (Ref #32)
32
Part #95801-0805002
