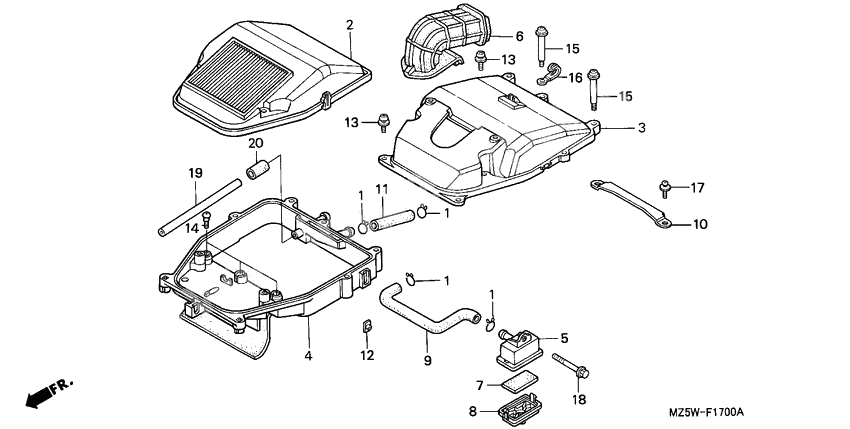

Воздушный фильтр
Воздушный фильтр
Воздухоочиститель (Ref #2)
2
Part #17210-MZ5-000
Cover, a/clnr hsg (Ref #3)
3
Part #17220-MZ5-000
Корпус воздухоочистителя (Ref #4)
4
Part #17230-MZ5-910
Case, sub a/clnr (Ref #5)
5
Part #17251-KT8-000
Канал (Ref #6)
6
Part #17251-MZ5-000
Filter, sub a/clnr (Ref #7)
7
Part #17254-KAZ-000
Cover, sub a/clnr (Ref #8)
8
Part #17256-MM4-000
Tube, sub a/clnr (Ref #9)
9
Part #17258-MZ5-000
STOPPER (Ref #10)
10
Part #17259-MZ5-000
Tube a, breather (Ref #11)
11
Part #17355-MZ5-000
Nut, special, 6x7 (Ref #12)
12
Part #61304-958-003
Screw, special, 5x12 (Ref #13)
13
Part #90105-MB1-000
Screw, special, 5x12 (Ref #13)
13
Part #90105-MB1-000
Screw, special, 5x12 (Ref #13)
13
Part #90105-MB1-000
Screw, special, 5x12 (Ref #13)
13
Part #90105-MB1-000
Болт (Ref #14)
14
Part #90141-KT8-000
Screw, pan (4x40) (Ref #15)
15
Part #90141-MZ5-000
Screw, pan (4x40) (Ref #15)
15
Part #90141-MZ5-000
Screw, pan (4x40) (Ref #15)
15
Part #90141-MZ5-000
Screw, pan (4x40) (Ref #15)
15
Part #90141-MZ5-000
Clip, switch cord (Ref #16)
16
Part #91400-MR8-000
Screw-washer (Ref #17)
17
Part #93891-050-100-7
BOLT (Ref #18)
18
Part #95701-060-450-7
