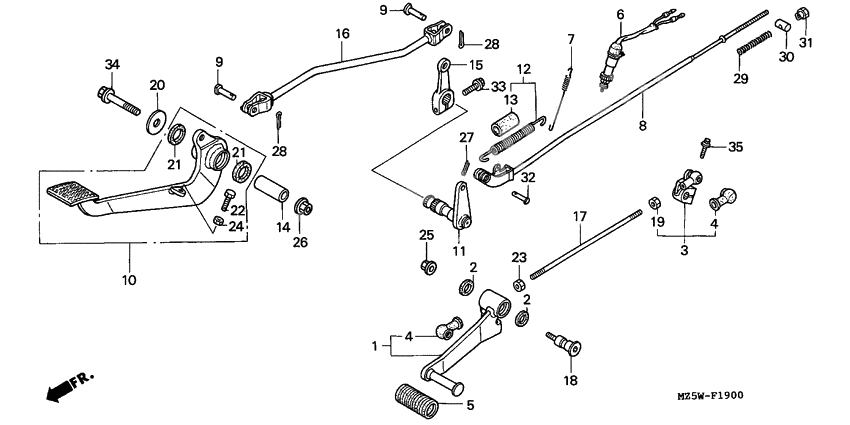

Brake pedal assy
Brake pedal assy
Pedal, gearshift (Ref #1)
1
Part #24705-MZ5-700
Rubber, dust seal (Ref #2)
2
Part #24706-MK3-770
Rubber, dust seal (Ref #2)
2
Part #24706-MK3-770
Rubber, dust seal (Ref #2)
2
Part #24706-MK3-770
Rubber, dust seal (Ref #2)
2
Part #24706-MK3-770
Arm, gearshift (Ref #3)
3
Part #24706-MZ5-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Пыльник (Ref #4)
4
Part #24724-422-000
Rubber, change pedal (Ref #5)
5
Part #24781-KR3-770
Switch, rr. stop (Ref #6)
6
Part #35350-MZ5-003
Spring, stop switch (Ref #7)
7
Part #35357-MF8-000
Rod, rr. brake (Ref #8)
8
Part #43451-MZ5-000
PIN (Ref #9)
9
Part #43456-MK7-000
PIN (Ref #9)
9
Part #43456-MK7-000
PIN (Ref #9)
9
Part #43456-MK7-000
PIN (Ref #9)
9
Part #43456-MK7-000
Педаль тормоза (Ref #10)
10
Part #46500-MZ5-000
Arm, rr. (Ref #11)
11
Part #46501-MZ5-000
Spring, brake pedal (Ref #12)
12
Part #46513-KY7-000
TUBE (Ref #13)
13
Part #46515-KY7-000
Collar, rr. (Ref #14)
14
Part #46515-MM8-000
Arm, rr. (Ref #15)
15
Part #46530-MZ5-000
Rod, rr. (Ref #16)
16
Part #46540-MZ5-000
Bolt, tie rod (Ref #17)
17
Part #90065-MN4-000
Bolt, change pivot (Ref #18)
18
Part #90115-KAF-000
Nut, governor arm fixing (left hand thread) (Ref #19)
19
Part #90201-700-000
Washer, plain, 10.3mm (Ref #20)
20
Part #90527-230-000
Dust seal, 17x23x3 (nok) (Ref #21)
21
Part #91206-968-003
Dust seal, 17x23x3 (nok) (Ref #21)
21
Part #91206-968-003
Dust seal, 17x23x3 (nok) (Ref #21)
21
Part #91206-968-003
Dust seal, 17x23x3 (nok) (Ref #21)
21
Part #91206-968-003
Bolt, hex., 6x18 (Ref #22)
22
Part #92101-06018-0A
Nut, hex., 6mm (Ref #23)
23
Part #94001-060200S
Гайка (Ref #24)
24
Part #94002-060-000-S
Гайка (Ref #25)
25
Part #94050-08000
Гайка (Ref #26)
26
Part #94050-10000
PIN (Ref #27)
27
Part #94201-20120
PIN (Ref #28)
28
Part #94201-20150
PIN (Ref #28)
28
Part #94201-20150
PIN (Ref #28)
28
Part #94201-20150
PIN (Ref #28)
28
Part #94201-20150
Spring a, brake rod (Ref #29)
29
Part #9501473100
Joint b, brake arm (Ref #30)
30
Part #9501532001
Nut b, brake rod adjusting (Ref #31)
31
Part #9501542000
Pin, joint (Ref #32)
32
Part #9501553000
BOLT (Ref #33)
33
Part #95701-080-250-0
Болт (Ref #34)
34
Part #95801-1005002
BOLT (Ref #35)
35
Part #96001-060-200-0
-
1990201-700-000
Nut, governor arm fixing (left hand thread)
1Доступно: Нет в наличии
