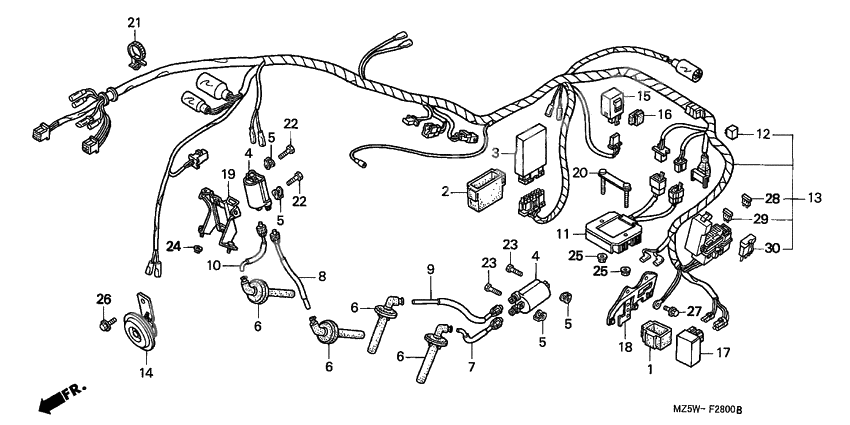

Harness wire
Harness wire
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-GB6-000
Rubber, spark unit (Ref #2)
2
Part #30405-MT6-000
Module, ign cont (Ref #3)
3
Part #30410-MZ5-671
Катушка зажигания (Ref #4)
4
Part #30510-KT7-023
Катушка зажигания (Ref #4)
4
Part #30510-KT7-023
Катушка зажигания (Ref #4)
4
Part #30510-KT7-023
Катушка зажигания (Ref #4)
4
Part #30510-KT7-023
Wire 1, ignition (Ref #7)
7
Part #30731-MZ5-000
Cord,high/t (Ref #8)
8
Part #30731-KEA-505
Rectifier, regulate (Ref #11)
11
Part #31600-MZ5-003
Wire harness (Ref #13)
13
Part #32100-MZ5-A80
Horn (low) (Ref #14)
14
Part #38120-MZ5-003
Relay, turn signal (Ref #15)
15
Part #38301-KK9-952
Suspension (Ref #16)
16
Part #38306-GE7-000
Indicator unit (Ref #17)
17
Part #38710-MZ5-003
Bracket, rr. (Ref #18)
18
Part #50333-MZ5-000
Кронштейн (Ref #19)
19
Part #50334-MZ5-000
PLATE (Ref #20)
20
Part #50336-MR1-000
Ременная лента кабель (Ref #21)
21
Part #90672-SB2-003
Болт (Ref #22)
22
Part #92101-06022-4J
Болт (Ref #22)
22
Part #92101-06022-4J
Болт (Ref #22)
22
Part #92101-06022-4J
Болт (Ref #22)
22
Part #92101-06022-4J
Bolt, hex., 6x28 (Ref #23)
23
Part #92101-06028-4J
Bolt, hex., 6x28 (Ref #23)
23
Part #92101-06028-4J
Bolt, hex., 6x28 (Ref #23)
23
Part #92101-06028-4J
Bolt, hex., 6x28 (Ref #23)
23
Part #92101-06028-4J
ナット (Ref #24)
24
Part #94050-06070
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Гайка (Ref #25)
25
Part #94050-06000
Bolt, flange, 8x12 (Ref #26)
26
Part #95701-0801207
BOLT (Ref #27)
27
Part #96001-060-120-0
Fuse (Ref #28)
28
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #29)
29
Part #98200-41500
Diode assy., three way (sumitomo) (Ref #30)
30
Part #31730-MAS-601
