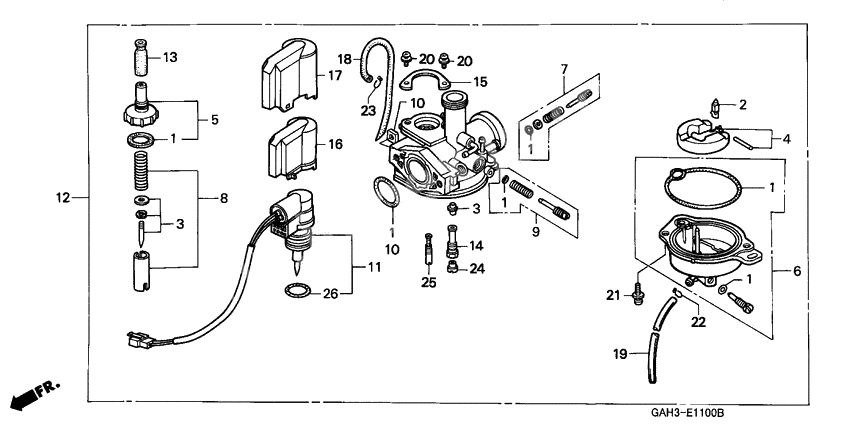

Carburetor assy
Carburetor assy
VALVE SET,FLOAT (Ref #2)
2
Part #16011-GZ4-670
NEEDLE SET,JET (Ref #3)
3
Part #16012-GAH-010
NEEDLE SET,JET (Ref #3)
3
Part #16012-GAH-010
NEEDLE SET,JET (Ref #3)
3
Part #16012-GAH-010
NEEDLE SET,JET (Ref #3)
3
Part #16012-GAH-010
FLOAT SET (Ref #4)
4
Part #16013-KBN-900
Top set (Ref #5)
5
Part #16014-KK7-740
Chamber set,float (Ref #6)
6
Part #16015-GW0-730
Screw set (Ref #7)
7
Part #16016-GAH-A00
Valve set,throttl (Ref #8)
8
Part #16022-GW0-003
Screw set (Ref #9)
9
Part #16028-GW0-003
Square nut set (Ref #10)
10
Part #16041-GBL-000
Square nut set (Ref #10)
10
Part #16041-GBL-000
Square nut set (Ref #10)
10
Part #16041-GBL-000
Square nut set (Ref #10)
10
Part #16041-GBL-000
Bystarter assy.,a (Ref #11)
11
Part #16046-GAH-010
Карбюратор (Ref #12)
12
Part #16100-GAH-651
Крышка уплотнения (Ref #13)
13
Part #16148-KB1-921
Jet holder,needle (Ref #14)
14
Part #16165-GW0-730
Plate, set (Ref #15)
15
Part #16186-GJ2-004
CAP,HOLDER (Ref #16)
16
Part #16190-GR1-003
CAP,HOLDER (Ref #17)
17
Part #16191-GM9-701
Tube,vinyle (Ref #18)
18
Part #16198-GW0-003
Tube, air vent (Ref #19)
19
Part #16199-GW2-013
Screw-washer (Ref #20)
20
Part #93892-040-080-8
Screw-washer (Ref #20)
20
Part #93892-040-080-8
Screw-washer (Ref #20)
20
Part #93892-040-080-8
Screw-washer (Ref #20)
20
Part #93892-040-080-8
Screw-washer (Ref #21)
21
Part #93892-040-140-8
CLIP (Ref #22)
22
Part #95002-02070
CLIP (Ref #23)
23
Part #95002-02080
Жиклер главный (Ref #24)
24
Part #99101-GAH-0750
Jet,slow,#35 (Ref #25)
25
Part #99103-GZ0-0350
O-ring, bystarter (Ref #26)
26
Part #16077-KG8-901
