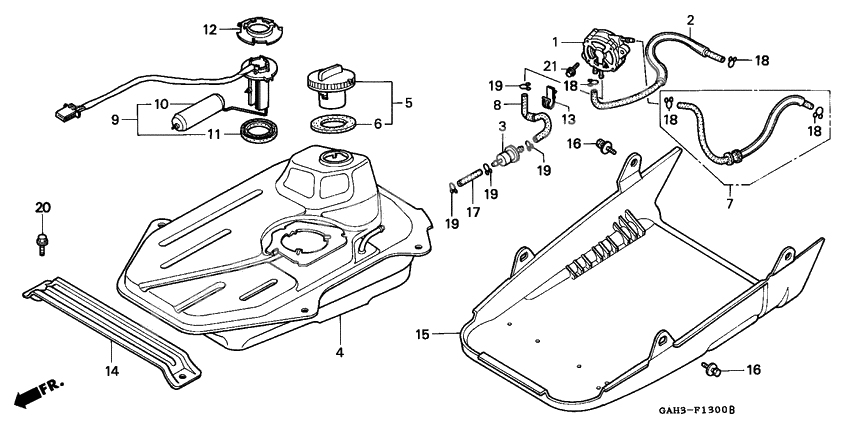

Tank fuel
Tank fuel
Fuel pump assy (Ref #1)
1
Part #16700-GW0-023
Tube,pulse (Ref #2)
2
Part #16710-GAH-000
Strainer comp., fuel (Ref #3)
3
Part #16910-GAH-690
Tank comp,fuel (Ref #4)
4
Part #17500-GAH-010
Cap comp.,fuel fi (Ref #5)
5
Part #17620-GS7-671
Прокладка (Ref #6)
6
Part #17632-383-831
Tube,fuel 4.5x475 (Ref #7)
7
Part #17681-GAH-000
Tube,fuel pump (5 (Ref #8)
8
Part #17683-GAH-A00
Set.fuel unit (Ref #9)
9
Part #37010-GAH-A00
Packing, base (Ref #11)
11
Part #37801-GA7-700
Retainer, fuel unit (Ref #12)
12
Part #37802-GA7-700
CLIP (Ref #13)
13
Part #50137-GAH-000
PLATE (Ref #14)
14
Part #50140-GAH-000
COVER,UNDER (Ref #15)
15
Part #50611-GAH-680
Bolt-washer (Ref #16)
16
Part #93404-060-160-8
Bolt-washer (Ref #16)
16
Part #93404-060-160-8
Bolt-washer (Ref #16)
16
Part #93404-060-160-8
Bolt-washer (Ref #16)
16
Part #93404-060-160-8
Tube, fuel, 5.3x40 (95001-55001-60m) (Ref #17)
17
Part #95001-550-404-0
BOLT (Ref #20)
20
Part #95701-060-120-0
BOLT (Ref #21)
21
Part #95701-060-160-0
-
-
