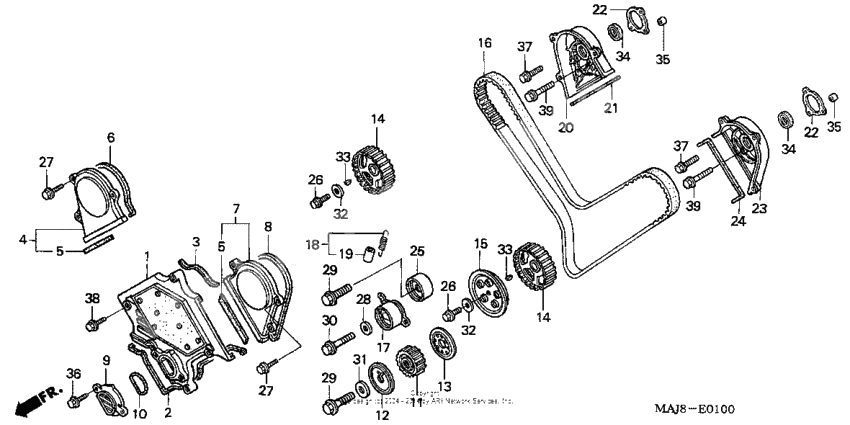

Front cover + timing belt
Front cover + timing belt
Cover, main (Ref #1)
1
Part #11520-MT3-000
Gasket, fr. (Ref #2)
2
Part #11524-MT3-000
Gasket b, fr. (Ref #3)
3
Part #11525-MT3-000
Cover, r. fr. (Ref #4)
4
Part #11530-MT3-000
Rubber, fr. cover (Ref #5)
5
Part #11533-MT3-300
Rubber, fr. cover (Ref #5)
5
Part #11533-MT3-300
Rubber, fr. cover (Ref #5)
5
Part #11533-MT3-300
Rubber, fr. cover (Ref #5)
5
Part #11533-MT3-300
Gasket, r. fr. cover (Ref #6)
6
Part #11535-MAJ-G20
Cover, l. fr. (Ref #7)
7
Part #11540-MT3-000
Gasket, l. fr. cover (Ref #8)
8
Part #11545-MAJ-G20
Cover, timing (Ref #9)
9
Part #11551-MT3-000
Gasket, timing cover (Ref #10)
10
Part #11554-MT3-003
Pulley (Ref #11)
11
Part #13621-PM3-013
Plate a (Ref #12)
12
Part #13622-MT3-000
Plate b (Ref #13)
13
Part #13623-MT3-000
Pulley (Ref #14)
14
Part #14211-MT3-003
Pulley (Ref #14)
14
Part #14211-MT3-003
Pulley (Ref #14)
14
Part #14211-MT3-003
Pulley (Ref #14)
14
Part #14211-MT3-003
Guide (Ref #15)
15
Part #14212-MT3-000
Ремень распределения (Ref #16)
16
Part #14401-MT3-004
Натяжитель (Ref #17)
17
Part #14510-MT3-003
Пружина (Ref #18)
18
Part #14513-MT3-000
Boot, spring (Ref #19)
19
Part #14515-PD2-000
Holder, r. camshaft (Ref #20)
20
Part #14521-MT3-300
Прокладка (Ref #21)
21
Part #14523-MT3-300
Прокладка (Ref #22)
22
Part #14525-MY3-000
Прокладка (Ref #22)
22
Part #14525-MY3-000
Прокладка (Ref #22)
22
Part #14525-MY3-000
Прокладка (Ref #22)
22
Part #14525-MY3-000
Holder, l. camshaft (Ref #23)
23
Part #14531-MT3-300
Прокладка датчика топливного (Ref #24)
24
Part #14533-MT3-300
Idler, timing belt (Ref #25)
25
Part #14560-MT3-003
Болт (Ref #26)
26
Part #90006-MN5-000
Болт (Ref #26)
26
Part #90006-MN5-000
Болт (Ref #26)
26
Part #90006-MN5-000
Болт (Ref #26)
26
Part #90006-MN5-000
Bolt (6x24) (Ref #27)
27
Part #90016-ML4-610
Bolt (6x24) (Ref #27)
27
Part #90016-ML4-610
Bolt (6x24) (Ref #27)
27
Part #90016-ML4-610
Bolt (6x24) (Ref #27)
27
Part #90016-ML4-610
Шайба (Ref #28)
28
Part #90017-PE0-000
Болт (Ref #29)
29
Part #90024-MT3-000
Болт (Ref #29)
29
Part #90024-MT3-000
Болт (Ref #29)
29
Part #90024-MT3-000
Болт (Ref #29)
29
Part #90024-MT3-000
Болт (Ref #30)
30
Part #90107-ML0-700
Шайба (Ref #31)
31
Part #90401-MT3-000
Шайба (Ref #32)
32
Part #90435-611-000
Шайба (Ref #32)
32
Part #90435-611-000
Шайба (Ref #32)
32
Part #90435-611-000
Шайба (Ref #32)
32
Part #90435-611-000
Ключ (Ref #33)
33
Part #90741-657-000
Ключ (Ref #33)
33
Part #90741-657-000
Ключ (Ref #33)
33
Part #90741-657-000
Ключ (Ref #33)
33
Part #90741-657-000
Oil seal (25x41x7) (Ref #34)
34
Part #91207-ME5-003
Oil seal (25x41x7) (Ref #34)
34
Part #91207-ME5-003
Oil seal (25x41x7) (Ref #34)
34
Part #91207-ME5-003
Oil seal (25x41x7) (Ref #34)
34
Part #91207-ME5-003
Dowel pin (Ref #35)
35
Part #94301-08100
Dowel pin (Ref #35)
35
Part #94301-08100
Dowel pin (Ref #35)
35
Part #94301-08100
Dowel pin (Ref #35)
35
Part #94301-08100
BOLT (Ref #36)
36
Part #95701-060-160-7
Bolt, flange, 6x28 (Ref #37)
37
Part #95701-0602800
Bolt, flange, 6x28 (Ref #37)
37
Part #95701-0602800
Bolt, flange, 6x28 (Ref #37)
37
Part #95701-0602800
Bolt, flange, 6x28 (Ref #37)
37
Part #95701-0602800
Bolt, flange, 6x30 (Ref #38)
38
Part #95701-0603007
Bolt, flange, 6x32 (Ref #39)
39
Part #95701-0603200
Bolt, flange, 6x32 (Ref #39)
39
Part #95701-0603200
Bolt, flange, 6x32 (Ref #39)
39
Part #95701-0603200
Bolt, flange, 6x32 (Ref #39)
39
Part #95701-0603200
