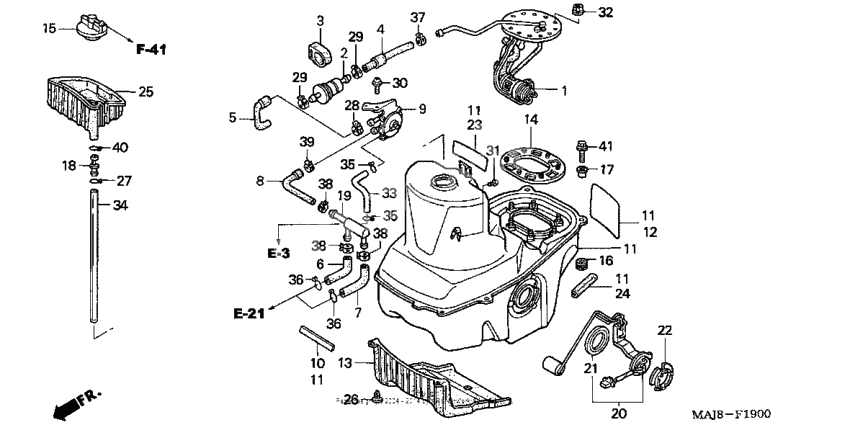

Fuel tank
Fuel tank
Pump assy., fuel (Ref #1)
1
Part #16700-MT3-010
Strainer, fuel (Ref #2)
2
Part #16900-MG8-003
RUBBER (Ref #3)
3
Part #16905-MG7-000
Tube b, fuel (Ref #4)
4
Part #16954-MT3-000
Tube c, fuel (Ref #5)
5
Part #16955-MT3-000
Tube, r. fuel (Ref #6)
6
Part #16956-MT3-000
Tube, l. fuel (Ref #7)
7
Part #16957-MT3-000
Tube d, fuel (Ref #8)
8
Part #16958-MT3-000
Valve assy., auto (Ref #9)
9
Part #16970-MT3-013
CUSHION (Ref #10)
10
Part #17509-MN5-000
TAPE (Ref #12)
12
Part #17539-MT3-310
PROTECTOR (Ref #13)
13
Part #17570-MT3-000
Gasket, base (Ref #14)
14
Part #17574-MN5-000
Cap, fuel filler (Ref #15)
15
Part #17670-MT3-003
Rubber, radiator mounting (Ref #16)
16
Part #19051-KA4-000
Collar, radiator mounting (Ref #17)
17
Part #19052-MB0-000
Joint, tube (Ref #18)
18
Part #19102-KT8-000
Joint, three-way (Ref #19)
19
Part #19525-MT8-000
Fuel unit (Ref #20)
20
Part #37800-MY3-781
PACKING (Ref #21)
21
Part #37801-689-000
RETAINER (Ref #22)
22
Part #37802-689-000
RETAINER (Ref #22)
22
Part #37802-SD2-000
Tape, protector (Ref #23)
23
Part #81229-MR5-000
Rubber, protector (Ref #24)
24
Part #83171-MT3-300
Tray, fuel tank (Ref #25)
25
Part #83502-MT3-000
CLIP (Ref #26)
26
Part #90651-MT3-000
Хомут в топливопровод (Ref #27)
27
Part #90661-GHB-610
Clip, fuel hose (Ref #28)
28
Part #90678-MN5-000
CLAMP (Ref #29)
29
Part #90682-SA0-671
CLAMP (Ref #29)
29
Part #90682-SA0-671
CLAMP (Ref #29)
29
Part #90682-SA0-671
CLAMP (Ref #29)
29
Part #90682-SA0-671
Screw-washer (Ref #30)
30
Part #93891-050-160-7
Болт (Ref #31)
31
Part #93901-24020
Гайка (Ref #32)
32
Part #94050-06080
Bulk hose (3.5x3000) (Ref #33)
33
Part #95001-350-0360M
Bulk hose (7.5x8000) (Ref #34)
34
Part #95001-750-0860M
CLIP (Ref #35)
35
Part #95002-02070
CLIP (Ref #35)
35
Part #95002-02070
CLIP (Ref #35)
35
Part #95002-02070
CLIP (Ref #35)
35
Part #95002-02070
Clip, tube (b12.5) (Ref #36)
36
Part #9500202130
Clip, tube (b12.5) (Ref #36)
36
Part #9500202130
Clip, tube (b12.5) (Ref #36)
36
Part #9500202130
Clip, tube (b12.5) (Ref #36)
36
Part #9500202130
CLAMP (Ref #37)
37
Part #95002-412-000-4
CLAMP (Ref #39)
39
Part #95002-413-000-8
Clip, tube (c12) (Ref #40)
40
Part #9500280000
BOLT (Ref #41)
41
Part #95701-060-250-0
