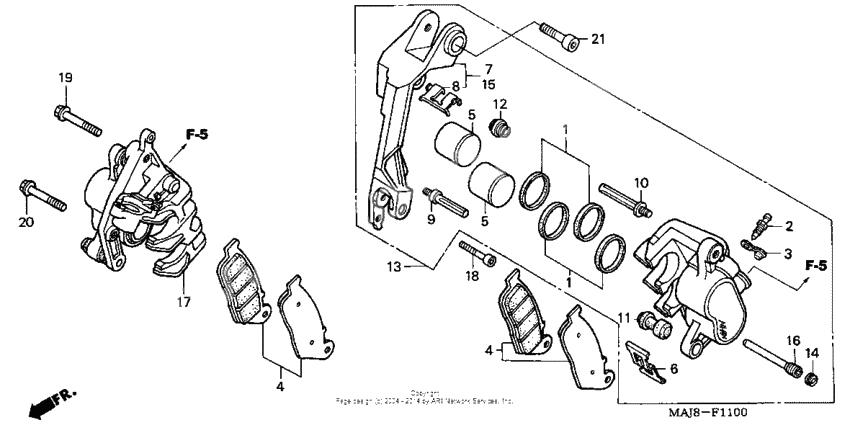

Front brake caliper

Front brake caliper

Front brake caliper
Seal set, piston (Ref #1)
1
Part #06431-MA3-405
Seal set, piston (Ref #1)
1
Part #06431-MA3-405
Seal set, piston (Ref #1)
1
Part #06431-MA3-405
Seal set, piston (Ref #1)
1
Part #06431-MA3-405
Болт (Ref #2)
2
Part #43352-568-003
CAP (Ref #3)
3
Part #43353-461-771
Pad set, fr. brake (Ref #4)
4
Part #45105-ML7-405
Pad set, fr. brake (Ref #4)
4
Part #45105-ML7-405
Pad set, fr. brake (Ref #4)
4
Part #45105-ML7-405
Pad set, fr. brake (Ref #4)
4
Part #45105-ML7-405
PISTON (Ref #5)
5
Part #45107-ML4-006
PISTON (Ref #5)
5
Part #45107-ML4-006
PISTON (Ref #5)
5
Part #45107-ML4-006
PISTON (Ref #5)
5
Part #45107-ML4-006
Пружина (Ref #6)
6
Part #45108-ML7-922
Brkt, l. fr. caliper (Ref #7)
7
Part #45110-MT3-006
RETAINER (Ref #8)
8
Part #45112-ML7-921
Bolt a, pin (Ref #9)
9
Part #45131-ML7-921
Pin, bolt (Ref #10)
10
Part #45131-166-016
Bush, pin (Ref #11)
11
Part #45132-166-016
Boot b (Ref #12)
12
Part #45133-MA3-006
Caliper sub-assy. (Ref #13)
13
Part #45150-MT3-305
Plug, pin (Ref #14)
14
Part #45203-MG3-016
Bracket, r. fr. (Ref #15)
15
Part #45210-MY3-781
Pin, hanger (Ref #16)
16
Part #45215-ML7-922
Caliper sub-assy. (Ref #17)
17
Part #45250-MY3-306
Bolt, socket (6x25) (Ref #18)
18
Part #90105-MJ1-000
Болт (Ref #19)
19
Part #90107-MT3-003
Болт (Ref #20)
20
Part #90107-MY3-780
Bolt, socket (8x36) (Ref #21)
21
Part #90131-ML7-000
+ -
