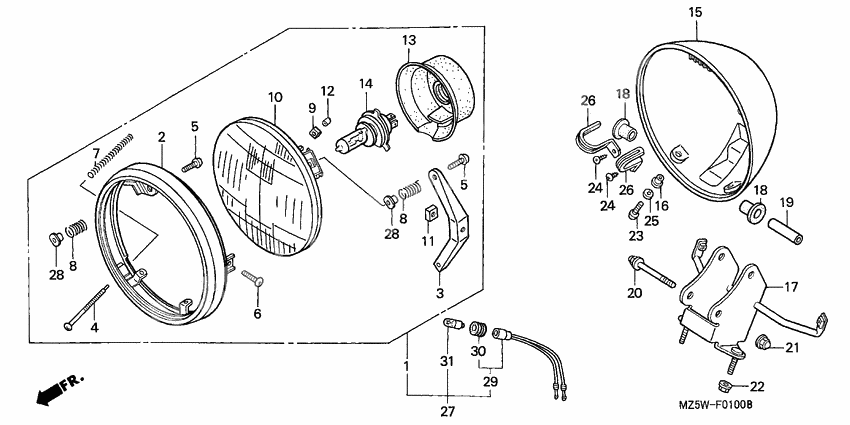

Phare VF750CW/X/Y) (VF750C2W/X/Y
Phare VF750CW/X/Y) (VF750C2W/X/Y
Hdlt (12v 60/55w) (Ref #1)
1
Part #33100-MK7-671
Rim, headlight (Ref #2)
2
Part #33101-MK7-671
STAY (Ref #3)
3
Part #33102-MK7-671
Screw, beam adj. (Ref #4)
4
Part #33103-MK7-671
Screw, special (Ref #5)
5
Part #33104-MK7-671
Screw, special (Ref #5)
5
Part #33104-MK7-671
Screw, special (Ref #5)
5
Part #33104-MK7-671
Screw, special (Ref #5)
5
Part #33104-MK7-671
Screw, special (Ref #6)
6
Part #33106-MK7-671
Пружина (Ref #7)
7
Part #33107-MK7-671
Spring, setting (Ref #8)
8
Part #33108-MK7-671
Spring, setting (Ref #8)
8
Part #33108-MK7-671
Spring, setting (Ref #8)
8
Part #33108-MK7-671
Spring, setting (Ref #8)
8
Part #33108-MK7-671
Nut, beam adjusting (Ref #9)
9
Part #33117-415-003
Блок освещения (Ref #10)
10
Part #33120-MK7-671
Nut, unit holder (Ref #11)
11
Part #33128-471-003
Cvr, adjusting screw (Ref #12)
12
Part #33136-111-671
Cover, rubber (Ref #13)
13
Part #33180-MJ0-010
Bulb (12v 60/55w) (Ref #14)
14
Part #34901-MC7-601AH
Case, headlight (Ref #15)
15
Part #61301-MN0-003
COLLAR (Ref #16)
16
Part #61304-292-000
Stay, headlight (Ref #17)
17
Part #61305-MZ5-000
RUBBER (Ref #18)
18
Part #61315-MZ5-000
RUBBER (Ref #18)
18
Part #61315-MZ5-000
RUBBER (Ref #18)
18
Part #61315-MZ5-000
RUBBER (Ref #18)
18
Part #61315-MZ5-000
Colr, headlight stay (Ref #19)
19
Part #61316-MK7-000
Bolt, cap (6mm) (Ref #20)
20
Part #90132-MK7-000
Nut, cap (6mm) (Ref #21)
21
Part #90201-425-700
Nut, u (6mm) (Ref #22)
22
Part #90301-MG3-000
Болт (Ref #23)
23
Part #93500-050-160-B
Болт (Ref #24)
24
Part #93901-34210
Болт (Ref #24)
24
Part #93901-34210
Болт (Ref #24)
24
Part #93901-34210
Болт (Ref #24)
24
Part #93901-34210
Шайба (Ref #25)
25
Part #94111-05000
Clip (4x90) (Ref #26)
26
Part #9459149000
Clip (4x90) (Ref #26)
26
Part #9459149000
Clip (4x90) (Ref #26)
26
Part #9459149000
Clip (4x90) (Ref #26)
26
Part #9459149000
-
1434901-MC7-601
Bulb (12v 60/55w)
1Replaced by 34901-MC7-601AH Доступно: Нет в наличии
