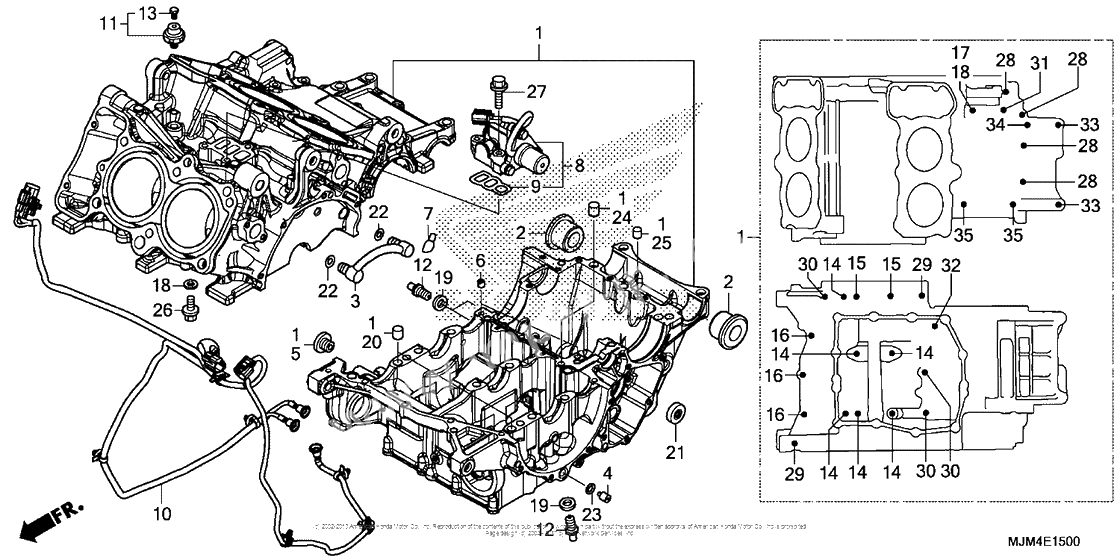

Картер двигателя
Картер двигателя
CRANKCASE SET (Ref #1)
1
Part #11000-MJM-D02
Collar, pivot (Ref #2)
2
Part #11105-MBG-000
Pipe, oil passage (Ref #3)
3
Part #11639-MCW-000
New Genuine Part (Ref #4)
4
Part #11642-MJM-D00
BOLT (Ref #5)
5
Part #12208-PR3-000
Ресивер (Ref #6)
6
Part #15515-KT8-000
Jet, oil (0.7mm) (Ref #7)
7
Part #15516-MBG-000
Valve assy., spool (Ref #8)
8
Part #15810-MCW-013
ПРОКЛАДКА КЛАПАНА ФАЗ РАСПРЕДВАЛА (Ref #9)
9
Part #15825-P0A-015
New Genuine Part (Ref #10)
10
Part #32111-MJM-D00
Switch, oil pressure (Ref #11)
11
Part #35500-MEH-661
Switch assy (Ref #12)
12
Part #35600-MFG-D01
Bolt-washer (Ref #13)
13
Part #90002-PA6-003
Болт (Ref #14)
14
Part #90014-MBG-003
Болт (Ref #15)
15
Part #90016-MBG-003
Болт (Ref #16)
16
Part #90017-MBG-000
Болт (Ref #17)
17
Part #90017-MW4-000
Шайба (Ref #18)
18
Part #90463-ML7-000
Шайба (Ref #19)
19
Part #90545-300-000
Установочный штифт (Ref #20)
20
Part #90701-MV9-670
Oil seal (8x25x8) (Ref #21)
21
Part #91204-MB0-013
Прокладка (Ref #22)
22
Part #91309-ML7-003
Прокладка (Ref #23)
23
Part #91301-PC9-003
Dowel pin (Ref #24)
24
Part #94301-10160
Pin b (Ref #25)
25
Part #94302-08140
BOLT (Ref #26)
26
Part #95701-060-120-0
BOLT (Ref #27)
27
Part #95701-060-250-0
Bolt, flange, 6x40 (Ref #28)
28
Part #95701-0604000
Bolt, flange, 6x50 (Ref #29)
29
Part #95701-060-500-0
Bolt, flange, 6x60 (Ref #30)
30
Part #95701-0606000
Bolt, flange, 6x65 (Ref #31)
31
Part #95701-0606500
Bolt, flange, 6x70 (Ref #32)
32
Part #95701-0607000
Bolt, flange, 10x55 (Ref #33)
33
Part #95701-1005500
Bolt, flange, 10x65 (Ref #34)
34
Part #95701-1006500
Bolt, flange, 10x75 (Ref #35)
35
Part #95701-1007500
