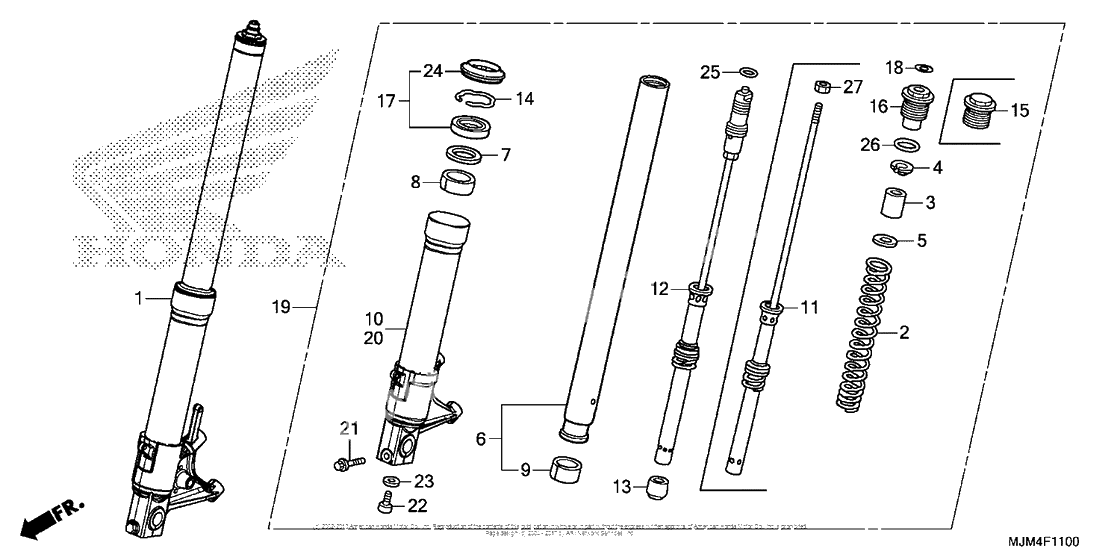

Вилка передней оси
Вилка передней оси
Fork assy., r. fr. (Ref #1)
1
Part #51400-MJM-305
New Genuine Part (Ref #2)
2
Part #51401-MJM-D01
Collar, spring (Ref #3)
3
Part #51402-MS2-003
Пружина (Ref #4)
4
Part #51404-MR7-003
Пружина (Ref #5)
5
Part #51405-KA4-711
New Genuine Part (Ref #6)
6
Part #51410-MJM-D01
Ring, back-up (Ref #7)
7
Part #51412-KA4-711
Bush, guide (Ref #8)
8
Part #51414-MCF-003
Bush, slider (Ref #9)
9
Part #51415-MBW-E11
New Genuine Part (Ref #10)
10
Part #51420-MJM-D01
New Genuine Part (Ref #11)
11
Part #51430-MJM-D01
Piece, oil lock (Ref #13)
13
Part #51432-MS2-003
RING (Ref #14)
14
Part #51447-KA4-711
New Genuine Part (Ref #15)
15
Part #51454-MJM-D01
Сальник + Пыльник, пера вилки (Ref #17)
17
Part #51490-MFL-003
Fork assy., l. fr. (Ref #19)
19
Part #51500-MJM-305
New Genuine Part (Ref #20)
20
Part #51520-MJM-D01
Болт (Ref #21)
21
Part #90109-MR7-000
Bolt, socket (8mm) (Ref #22)
22
Part #90116-383-721
Шайба (Ref #23)
23
Part #90544-283-000
DUST SEAL (Ref #24)
24
Part #91254-MEJ-003
Прокладка (Ref #26)
26
Part #91356-KA4-711
Nut, hex. (10mm) (Ref #27)
27
Part #51451-MAJ-G41
