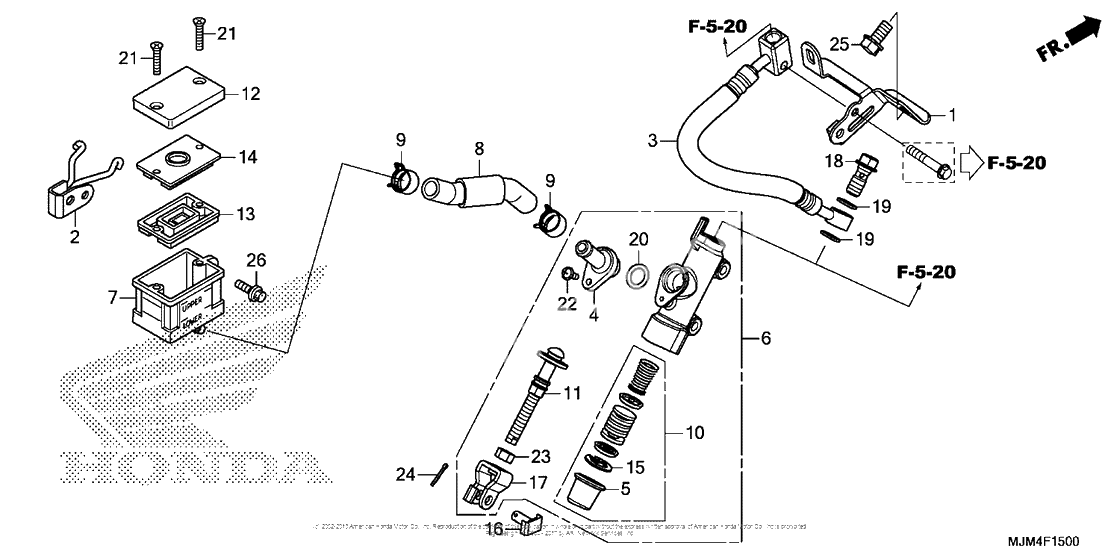

Задний тормозной цилиндр
Задний тормозной цилиндр
New Genuine Part (Ref #1)
1
Part #43160-MJM-D00
New Genuine Part (Ref #2)
2
Part #43163-MJM-D10
Коннектор (Ref #4)
4
Part #43503-HB5-006
Ботинок (Ref #5)
5
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #6)
6
Part #43510-MJM-305
Cup, oil (Ref #7)
7
Part #43511-KT8-006
New Genuine Part (Ref #8)
8
Part #43512-MJM-D01
Clamp, master cylinder oil hose (Ref #9)
9
Part #43514-445-771
PISTON SET (Ref #10)
10
Part #43520-MB2-315
New Genuine Part (Ref #11)
11
Part #43530-MGY-641
Cap, master cylinder (Ref #12)
12
Part #45513-HR0-305
DIAPHRAGM (Ref #13)
13
Part #45520-MG7-006
Пластина (Ref #14)
14
Part #45521-HA2-006
Circlip (Ref #15)
15
Part #46182-MEL-D21
Pin, brake rod (Ref #16)
16
Part #46503-MAL-000
Joint, brake rod (Ref #17)
17
Part #46504-MAL-601
Прокладка (Ref #20)
20
Part #91212-422-006
Screw, flat (4x40) (Ref #21)
21
Part #93600-040401G
Screw-washer (Ref #22)
22
Part #93893-040-120-7
Гайка (Ref #23)
23
Part #94002-080-000-S
PIN (Ref #24)
24
Part #94201-20120
BOLT (Ref #25)
25
Part #95701-080-160-8
Bolt, flange, 6x16 (Ref #26)
26
Part #96001-0601607
