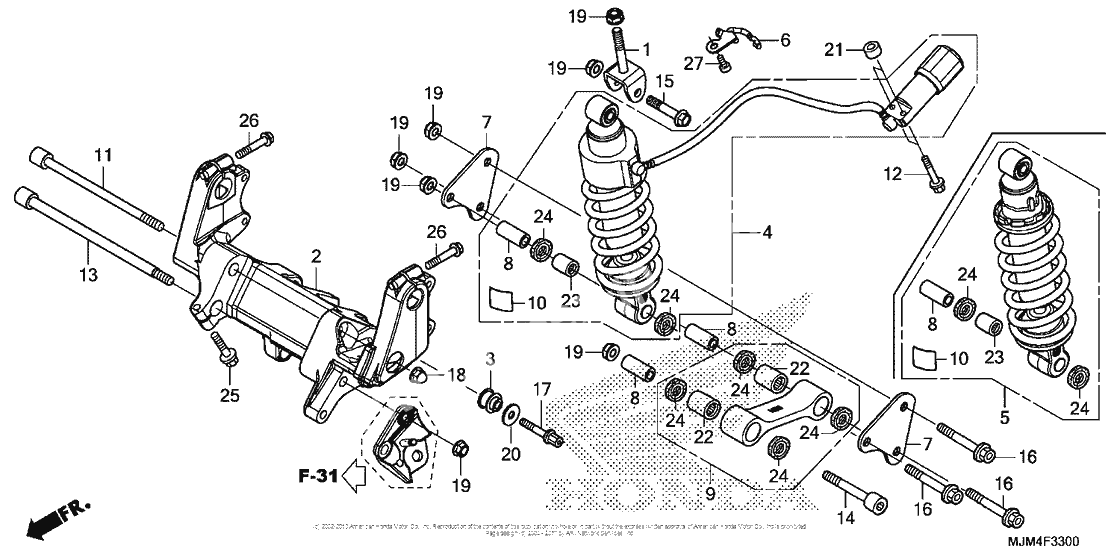

Задний амортизатор
Задний амортизатор
Bracket, rr. rubber (Ref #1)
1
Part #50233-MZ7-000
Bracket, rr. cushion (Ref #2)
2
Part #50475-MCW-D00
Colr, l. main stand (Ref #3)
3
Part #50504-MBG-000
Cushion assy., rr. (Ref #5)
5
Part #52400-MJM-305
New Genuine Part (Ref #7)
7
Part #52461-MJM-D01
COLLAR (Ref #8)
8
Part #52463-MAL-G00
Rod sub-assy. (Ref #9)
9
Part #52475-MBG-000
Label, rr. (Ref #10)
10
Part #87516-KV6-610
Bolt (10x190) (Ref #11)
11
Part #90101-MCW-D00
Bolt (10x230) (Ref #13)
13
Part #90102-MCW-D00
Bolt, socket (10x70) (Ref #14)
14
Part #90110-MR7-000
New Genuine Part (Ref #15)
15
Part #90118-MFR-670
Болт (Ref #16)
16
Part #90105-GE3-760
Bolt (10x47) (Ref #17)
17
Part #90130-MCW-D00
Nut (10mm) (Ref #18)
18
Part #90202-MR1-000
Nut, u, 10mm (Ref #19)
19
Part #90304-GE8-003
Шайба (Ref #20)
20
Part #90501-579-020
Bearing, needle (Ref #22)
22
Part #91071-KV3-005
Bearing, needle, 17x24x20 (ntn) (Ref #23)
23
Part #91072-KT7-003
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #24)
24
Part #91262-KV3-831
Болт (Ref #25)
25
Part #96300-0804000
Болт (Ref #26)
26
Part #96300-0804500
