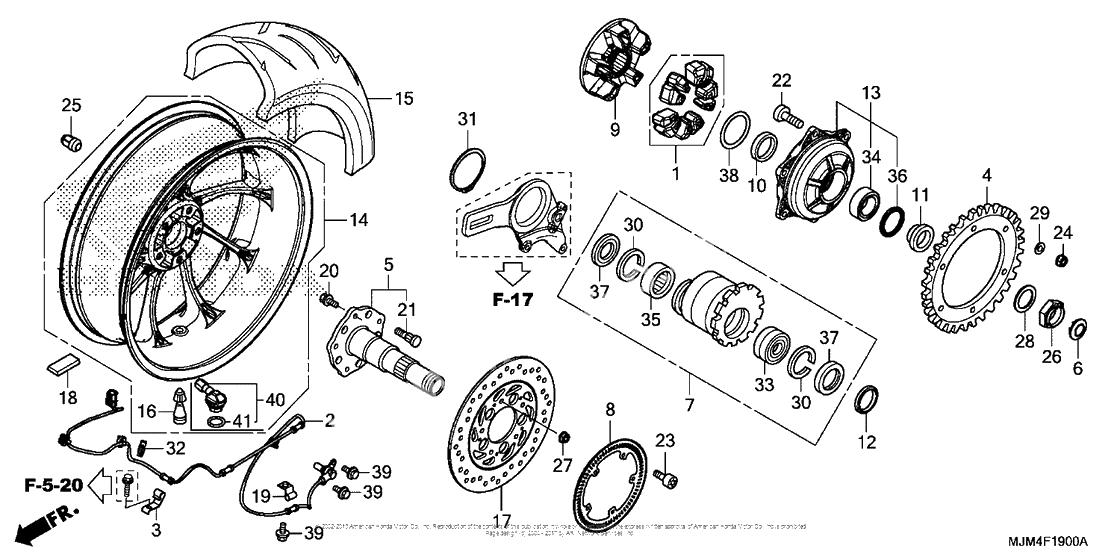

Заднее колесо
Заднее колесо
Damper set, wheel (Ref #1)
1
Part #06410-MBG-000
New Genuine Part (Ref #2)
2
Part #38510-MJM-D01
New Genuine Part (Ref #3)
3
Part #38516-MJM-D10
SPROCKET, FINAL DRIVEN (Ref #4)
4
Part #41201-MJM-D00
New Genuine Part (Ref #5)
5
Part #42300-MJM-D00
Колпачок колёсного диска (Ref #6)
6
Part #42303-MEH-000
Holder, bearing (Ref #7)
7
Part #42500-MBG-000
New Genuine Part (Ref #8)
8
Part #42515-MJM-D10
Flange, final driven (Ref #9)
9
Part #42605-MBG-000
Collar, rr. (Ref #10)
10
Part #42621-MT4-000
Colr, rr. axle side (Ref #11)
11
Part #42622-MT4-000
Collar, rr. axle (Ref #12)
12
Part #42623-MBG-000
Hub assy., sprocket (Ref #13)
13
Part #42630-MCW-H50
Wheel sub (type1) (Ref #14)
14
Part #42650-MJM-305ZA
Tire (180/55zr17) (Ref #15)
15
Part #42711-MJM-D02
Tire (180/55zr17) (Ref #15)
15
Part #42711-MJM-D01
Клапан, обод колеса (Ref #16)
16
Part #42753-ML7-003
Клапан, обод колеса (Ref #16)
16
Part #42753-ML7-004
New Genuine Part (Ref #17)
17
Part #43251-MJM-D00
New Genuine Part (Ref #18)
18
Part #44723-MGC-003
New Genuine Part (Ref #18)
18
Part #44722-MGC-003
New Genuine Part (Ref #18)
18
Part #44721-MGC-003
Clamp a, sensor cord (Ref #19)
19
Part #45157-MEJ-J00
Болт (Ref #20)
20
Part #90102-MFN-D00
БОЛТ, 14ММ (Ref #21)
21
Part #90113-SM1-005
Bolt (10x30) (Ref #22)
22
Part #90121-MCF-000
Bolt, torx (5x7) (Ref #23)
23
Part #90131-MFJ-A50
Nut, u (10mm) (Ref #24)
24
Part #90304-KAE-871
Гайка (Ref #25)
25
Part #90381-S4L-003
Nut, lock (35mm) (Ref #26)
26
Part #90306-MFN-D00
Nut, flange (self-lock) (m8x1.25) (Ref #27)
27
Part #90309-428-731
Washer (35) (Ref #28)
28
Part #90501-MBG-003
Шайба (Ref #29)
29
Part #90502-MCF-000
Circlip (62mm) (Ref #30)
30
Part #90651-ML0-731
Circlip (75mm) (Ref #31)
31
Part #90652-ML0-731
Clip, cable (14mm) (Ref #32)
32
Part #90690-MCA-003
Bearing (6908lu) (Ref #33)
33
Part #91061-ML0-731
Bearing (35x55x10) (Ref #34)
34
Part #91061-MT4-003
Bearing, rr. (Ref #35)
35
Part #91062-MR7-003
Dust seal (45x55x5) (Ref #36)
36
Part #91258-ML7-003
Dust seal (50x62x5) (Ref #37)
37
Part #91284-MR7-003
Прокладка (Ref #38)
38
Part #91352-MN8-003
Bolt, flange, 6x10 (Ref #39)
39
Part #96001-060-100-0
