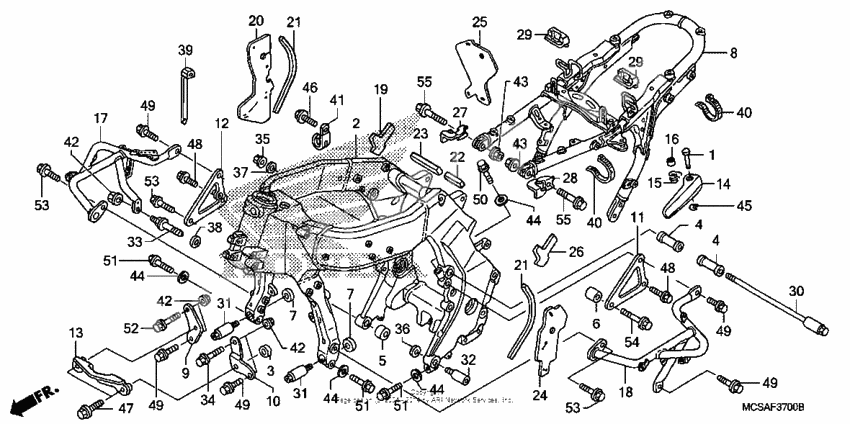

Frame
Frame
Pin, kick starter (Ref #1)
1
Part #28321-427-770
Frame *nh146m* (Ref #2)
2
Part #50100-MCS-L02ZA
Collar, fr. eng hgr (Ref #3)
3
Part #50190-MCS-G00
Collar, rr. engine (Ref #4)
4
Part #50191-MCS-G03
Collar, rr. engine (Ref #4)
4
Part #50191-MCS-G03
Collar, rr. engine (Ref #4)
4
Part #50191-MCS-G03
Collar, rr. engine (Ref #4)
4
Part #50191-MCS-G03
Collar, rr. engine (Ref #5)
5
Part #50192-MCS-G02
Collar, l. rr. (Ref #6)
6
Part #50193-MCS-G00
Collar, fr. engine (Ref #7)
7
Part #50216-MCS-G02
Collar, fr. engine (Ref #7)
7
Part #50216-MCS-G02
Collar, fr. engine (Ref #7)
7
Part #50216-MCS-G02
Collar, fr. engine (Ref #7)
7
Part #50216-MCS-G02
Seat rail (Ref #8)
8
Part #50240-MCS-G03
Plate, r. fr. (Ref #9)
9
Part #50310-MCS-G00
Plate, l. fr. (Ref #10)
10
Part #50311-MCS-G00
Plate, rr. eng hgr (Ref #11)
11
Part #50312-MCS-G00
Plate, rr. eng hgr (Ref #12)
12
Part #50312-MCS-L00
Plate, cross hanger (Ref #13)
13
Part #50318-MCS-G02
Grip *nh105* (Ref #14)
14
Part #50400-MT3-000ZE
Spring, r (Ref #15)
15
Part #50617-MM5-000
Collar, handle setting (Ref #16)
16
Part #53103-GN5-900
Guard, r. engine (Ref #17)
17
Part #64206-MCS-L01
Guard, l. engine (Ref #18)
18
Part #64216-MCS-G00
Mat, r. frame (Ref #19)
19
Part #64324-MCS-G00
Mat a, heat guard (Ref #21)
21
Part #64363-MCS-G00
Mat a, heat guard (Ref #21)
21
Part #64363-MCS-G00
Mat a, heat guard (Ref #21)
21
Part #64363-MCS-G00
Mat a, heat guard (Ref #21)
21
Part #64363-MCS-G00
Mat b, heat guard (Ref #22)
22
Part #64364-MCS-G00
Mat c, heat guard (Ref #23)
23
Part #64365-MCS-G00
Mat, l. frame (Ref #26)
26
Part #64374-MCS-G00
Plate, r (Ref #27)
27
Part #77116-MCS-G00
Plate, l (Ref #28)
28
Part #77117-MCS-G00
Rubber, seat setting (Ref #29)
29
Part #77205-MCS-G00
Rubber, seat setting (Ref #29)
29
Part #77205-MCS-G00
Rubber, seat setting (Ref #29)
29
Part #77205-MCS-G00
Rubber, seat setting (Ref #29)
29
Part #77205-MCS-G00
Bolt (10x328) (Ref #30)
30
Part #90102-MCS-G00
Болт (Ref #31)
31
Part #90112-MCS-G04
Болт (Ref #31)
31
Part #90112-MCS-G04
Болт (Ref #31)
31
Part #90112-MCS-G04
Болт (Ref #31)
31
Part #90112-MCS-G04
Bolt (12x28.5) (Ref #32)
32
Part #90119-MCS-G02
Болт (Ref #33)
33
Part #90134-MCS-G01
Болт (Ref #34)
34
Part #90150-GN1-000
Nut, u, 10mm (Ref #35)
35
Part #90304-GE8-003
Washer, plain, 12mm (Ref #36)
36
Part #90401-ZG5-000
Washer, 10.5x27x4 (Ref #37)
37
Part #90405-758-L00
Шайба (Ref #38)
38
Part #90440-GT4-970
BAND (Ref #40)
40
Part #90679-SG9-E01
BAND (Ref #40)
40
Part #90679-SG9-E01
BAND (Ref #40)
40
Part #90679-SG9-E01
BAND (Ref #40)
40
Part #90679-SG9-E01
Clip, cord (Ref #41)
41
Part #91405-943-000
Гайка (Ref #43)
43
Part #94050-10000
Гайка (Ref #43)
43
Part #94050-10000
Гайка (Ref #43)
43
Part #94050-10000
Гайка (Ref #43)
43
Part #94050-10000
E-RING (Ref #45)
45
Part #94540-06018
BOLT (Ref #46)
46
Part #95701-060-100-0
Bolt, flange, 8x40 (Ref #47)
47
Part #95701-0804000
Болт (Ref #48)
48
Part #96300-0802000
Болт (Ref #48)
48
Part #96300-0802000
Болт (Ref #48)
48
Part #96300-0802000
Болт (Ref #48)
48
Part #96300-0802000
Болт (Ref #50)
50
Part #96300-0803500
Болт (Ref #52)
52
Part #96300-0805000
Болт (Ref #54)
54
Part #96300-1005000
Болт (Ref #55)
55
Part #96400-1006500
Болт (Ref #55)
55
Part #96400-1006500
Болт (Ref #55)
55
Part #96400-1006500
Болт (Ref #55)
55
Part #96400-1006500
