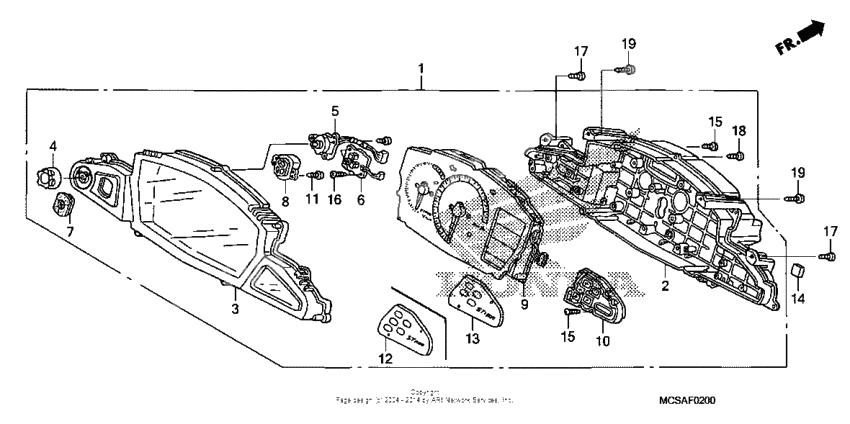

Meter
Meter
Meter, combination (Ref #1)
1
Part #37100-MCS-315
Case assy. (lower) (Ref #2)
2
Part #37101-MCS-G01
Case assy, (upper) (Ref #3)
3
Part #37102-MCS-305
Выключатель кнопочный компл (Ref #4)
4
Part #37103-MCS-G01
Switch assy., aiming (Ref #5)
5
Part #37104-MCS-G01
Switch, three-way (Ref #6)
6
Part #37105-MCS-G01
Резинка переключателя (Ref #7)
7
Part #37107-MCS-G01
Plate (3sw) (Ref #8)
8
Part #37108-MCS-G01
Meter, combination (Ref #9)
9
Part #37110-MCS-L02
Indicator assy. (Ref #10)
10
Part #37120-MCS-641
Screw, tap (3x14) (Ref #11)
11
Part #37214-KV7-671
Lens, sheet (Ref #13)
13
Part #37601-MCS-771
Rubber a, side cover (Ref #14)
14
Part #83605-MY5-G30
Screw, tap (3x14) (Ref #15)
15
Part #90101-MCV-000
Screw, tap (3x14) (Ref #15)
15
Part #90101-MCV-000
Screw, tap (3x14) (Ref #15)
15
Part #90101-MCV-000
Screw, tap (3x14) (Ref #15)
15
Part #90101-MCV-000
Болт (Ref #16)
16
Part #93901-22320
Болт (Ref #17)
17
Part #93903-24410
Болт (Ref #17)
17
Part #93903-24410
Болт (Ref #17)
17
Part #93903-24410
Болт (Ref #17)
17
Part #93903-24410
Болт (Ref #18)
18
Part #93903-24420
Болт (Ref #19)
19
Part #93903-25210
Болт (Ref #19)
19
Part #93903-25210
Болт (Ref #19)
19
Part #93903-25210
Болт (Ref #19)
19
Part #93903-25210
