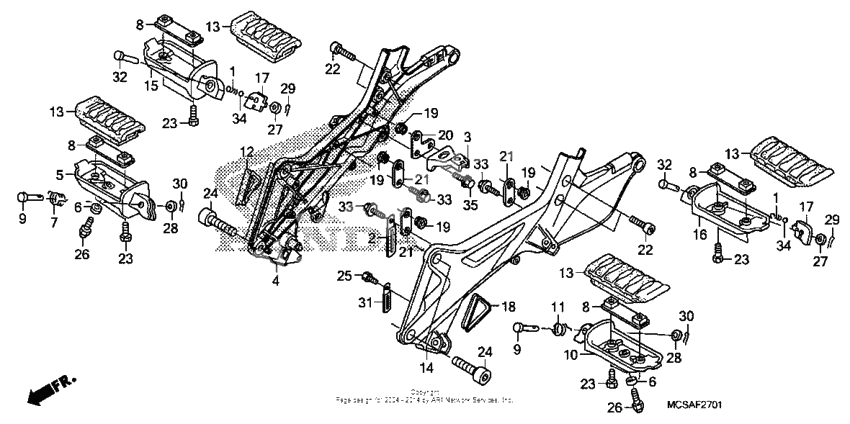

Step ('08-)
Step ('08-)
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Пружина (Ref #1)
1
Part #28333-300-000
Clip, pulser cord (Ref #2)
2
Part #32925-958-000
Stay, battery (Ref #3)
3
Part #50325-MCS-G00
Holder, r. *nh146m* (Ref #4)
4
Part #50600-MCS-D90ZA
Arm, r. step (Ref #5)
5
Part #50612-MT3-000
Collar (5.0) (Ref #6)
6
Part #50613-MT3-000
Collar (5.0) (Ref #6)
6
Part #50613-MT3-000
Collar (5.0) (Ref #6)
6
Part #50613-MT3-000
Collar (5.0) (Ref #6)
6
Part #50613-MT3-000
Spring, r (Ref #7)
7
Part #50617-MM5-000
ШТИФТ ПОДНОЖКИ (Ref #9)
9
Part #50639-ML0-010
ШТИФТ ПОДНОЖКИ (Ref #9)
9
Part #50639-ML0-010
ШТИФТ ПОДНОЖКИ (Ref #9)
9
Part #50639-ML0-010
ШТИФТ ПОДНОЖКИ (Ref #9)
9
Part #50639-ML0-010
Arm, l. step (Ref #10)
10
Part #50642-MT3-305
Spring, l (Ref #11)
11
Part #50644-MM5-000
Cover, r. step (Ref #12)
12
Part #50653-MCS-A30
Holder, l. *nh146m* (Ref #14)
14
Part #50700-MCS-D90ZA
Bar, r. pillion step (Ref #15)
15
Part #50711-MT3-305
Bar, l. pillion step (Ref #16)
16
Part #50712-MT3-305
PLATE (Ref #17)
17
Part #50718-MT3-000
PLATE (Ref #17)
17
Part #50718-MT3-000
PLATE (Ref #17)
17
Part #50718-MT3-000
PLATE (Ref #17)
17
Part #50718-MT3-000
Cover, l. step (Ref #18)
18
Part #50753-MCS-A30
Stay a, cover (Ref #20)
20
Part #83470-MCS-D90
Bolt, socket (10x23) (Ref #22)
22
Part #90105-KAF-000
Bolt, socket (10x23) (Ref #22)
22
Part #90105-KAF-000
Bolt, socket (10x23) (Ref #22)
22
Part #90105-KAF-000
Bolt, socket (10x23) (Ref #22)
22
Part #90105-KAF-000
Bolt, socket (12x34) (Ref #24)
24
Part #90127-MCS-G00
Bolt, socket (12x34) (Ref #24)
24
Part #90127-MCS-G00
Bolt, socket (12x34) (Ref #24)
24
Part #90127-MCS-G00
Bolt, socket (12x34) (Ref #24)
24
Part #90127-MCS-G00
Болт (Ref #25)
25
Part #92101-04010-0A
Bolt, cap (8x16) (Ref #26)
26
Part #92501-08016-0A
Bolt, cap (8x16) (Ref #26)
26
Part #92501-08016-0A
Bolt, cap (8x16) (Ref #26)
26
Part #92501-08016-0A
Bolt, cap (8x16) (Ref #26)
26
Part #92501-08016-0A
Шайба (Ref #27)
27
Part #94101-06800
Шайба (Ref #27)
27
Part #94101-06800
Шайба (Ref #27)
27
Part #94101-06800
Шайба (Ref #27)
27
Part #94101-06800
Шайба (Ref #28)
28
Part #94101-08000
Шайба (Ref #28)
28
Part #94101-08000
Шайба (Ref #28)
28
Part #94101-08000
Шайба (Ref #28)
28
Part #94101-08000
PIN (Ref #29)
29
Part #94201-16120
PIN (Ref #29)
29
Part #94201-16120
PIN (Ref #29)
29
Part #94201-16120
PIN (Ref #29)
29
Part #94201-16120
PIN (Ref #30)
30
Part #94201-20150
PIN (Ref #30)
30
Part #94201-20150
PIN (Ref #30)
30
Part #94201-20150
PIN (Ref #30)
30
Part #94201-20150
Clip (2x50) (Ref #31)
31
Part #9459125000
Pin c (Ref #32)
32
Part #9501583000
Pin c (Ref #32)
32
Part #9501583000
Pin c (Ref #32)
32
Part #9501583000
Pin c (Ref #32)
32
Part #9501583000
Ball (Ref #34)
34
Part #96211-08000
Ball (Ref #34)
34
Part #96211-08000
Ball (Ref #34)
34
Part #96211-08000
Ball (Ref #34)
34
Part #96211-08000
Болт (Ref #35)
35
Part #96300-0601600
