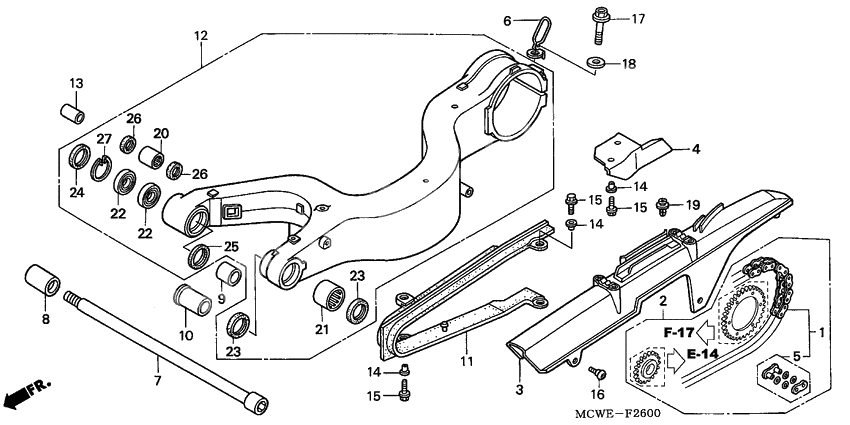

Swingarm
Swingarm
Chain set, drive (Ref #1)
1
Part #06405-MZ1-P11
Chain set, drive (Ref #1)
1
Part #06405-MZ1-P01
Цепное звено (Ref #2)
2
Part #06406-MCW-D00
Case, drive chain (Ref #3)
3
Part #40510-MBG-000
Guide, rr. brake air (Ref #4)
4
Part #40515-MBG-000
Master link (Ref #5)
5
Part #40535-MZ1-316
Master link (Ref #5)
5
Part #40535-MZ1-317
Guide, brake hose (Ref #6)
6
Part #43350-MCP-900
Bolt, swingarm pivot (Ref #7)
7
Part #52101-MCW-D00
Nut, swingarm pivot (Ref #8)
8
Part #52102-MCW-D00
Collar, r. pivot (Ref #9)
9
Part #52141-MBG-000
Collar, l (Ref #10)
10
Part #52143-MBB-000
Slider, chain (Ref #11)
11
Part #52170-MCW-D00
Swingarm sub-assy. (Ref #12)
12
Part #52200-MCW-H50
COLLAR (Ref #13)
13
Part #52463-MAL-G00
Screw, pan (6x11) (Ref #16)
16
Part #90106-KY2-701
Болт (Ref #17)
17
Part #90155-MBG-000
Шайба (Ref #18)
18
Part #90559-HA8-000
CLIP (Ref #19)
19
Part #90684-MBG-003
Bearing, needle (Ref #20)
20
Part #91071-KV3-005
Bearing, needle (Ref #21)
21
Part #91071-MR7-003
Bearing (20x37x9) (Ref #22)
22
Part #91072-MR7-003
Bearing (20x37x9) (Ref #22)
22
Part #91072-MR7-003
Bearing (20x37x9) (Ref #22)
22
Part #91072-MR7-003
Bearing (20x37x9) (Ref #22)
22
Part #91072-MR7-003
Dust seal (28x37x4) (Ref #23)
23
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #23)
23
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #23)
23
Part #91202-MR7-003
Dust seal (28x37x4) (Ref #23)
23
Part #91202-MR7-003
Dust seal (25x35x7) (Ref #24)
24
Part #91257-KY4-900
Dust seal (27x34x4) (Ref #25)
25
Part #91261-KZ3-861
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #26)
26
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #26)
26
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #26)
26
Part #91262-KV3-831
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #26)
26
Part #91262-KV3-831
Кольцо стопорное (Ref #27)
27
Part #9452037000
