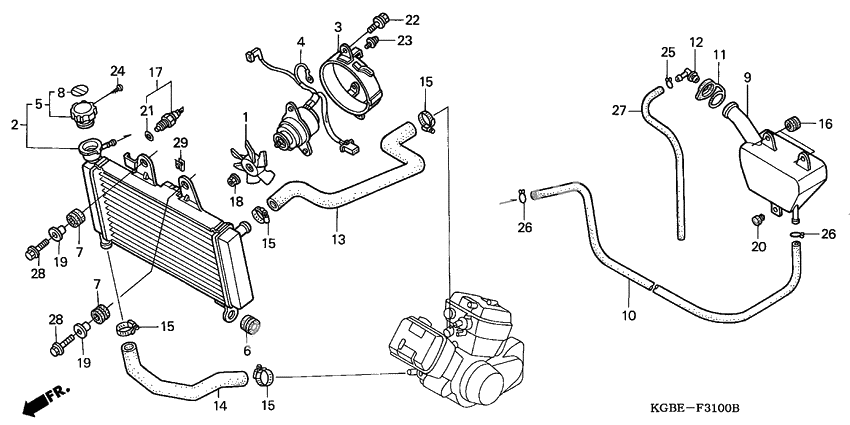

Radiator
Radiator
Fan comp.,cooling (Ref #1)
1
Part #19025-KM9-008
Radiator comp (Ref #2)
2
Part #19010-KGB-611
Shroud comp. (Ref #3)
3
Part #19015-KGB-611
Motor,cooling fan (Ref #4)
4
Part #19030-KGB-611
Крышка радиатора (Ref #5)
5
Part #19045-MY3-621
Rubber, radiator mounting (Ref #6)
6
Part #19051-KA3-830
RUBBER (Ref #7)
7
Part #19051-KGB-610
RUBBER (Ref #7)
7
Part #19051-KGB-610
RUBBER (Ref #7)
7
Part #19051-KGB-610
RUBBER (Ref #7)
7
Part #19051-KGB-610
Seal, radiator cap (Ref #8)
8
Part #19055-MV9-881
Tank,radiator res (Ref #9)
9
Part #19101-KGB-900
Tube,radiator (Ref #10)
10
Part #19106-KGB-610
Cap, reserve tank (Ref #11)
11
Part #19108-KK4-000
Adapter, reserve cap (Ref #12)
12
Part #19113-KR1-760
Hose,radiator up (Ref #13)
13
Part #19501-KGB-610
Hose,radiator low (Ref #14)
14
Part #19502-KGB-610
Grommet,battery b (Ref #16)
16
Part #31504-MG8-300
Switch, thermostat (Ref #17)
17
Part #37760-MT2-003
Nut, toothed (3mm) (Ref #18)
18
Part #90308-KM3-003
Collar (6.2x11) (Ref #19)
19
Part #90501-GR2-000
Collar (6.2x11) (Ref #19)
19
Part #90501-GR2-000
Collar (6.2x11) (Ref #19)
19
Part #90501-GR2-000
Collar (6.2x11) (Ref #19)
19
Part #90501-GR2-000
Plug, cone (Ref #20)
20
Part #90899-385-000
Прокладка (Ref #21)
21
Part #91307-PH7-660
Bolt-washer (Ref #22)
22
Part #93401-060-120-8
Screw-washer (Ref #23)
23
Part #93891-040-080-8
Болт (Ref #24)
24
Part #93901-22180
CLIP (Ref #25)
25
Part #95002-02080
CLIP (Ref #26)
26
Part #95002-02100
CLIP (Ref #26)
26
Part #95002-02100
CLIP (Ref #26)
26
Part #95002-02100
CLIP (Ref #26)
26
Part #95002-02100
Tube,4.5x530 (Ref #27)
27
Part #95005-455-303-0
Bolt, flange, 6x25 (Ref #28)
28
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #28)
28
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #28)
28
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #28)
28
Part #95701-060-250-7
-
-
Цена: 270.00 р.
Доступно: 0
-
