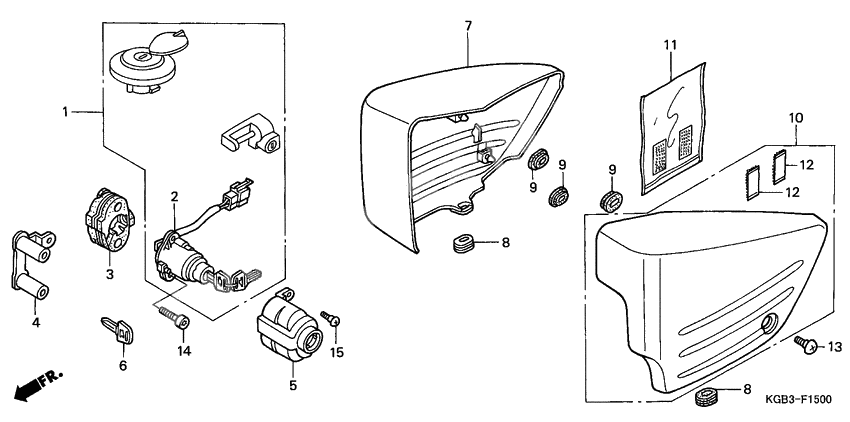

Side cover
Side cover
Key set (Ref #1)
1
Part #35010-KGB-610
Switch assy,comb (Ref #2)
2
Part #35100-KGB-611
Основание (Ref #3)
3
Part #35102-MR1-000
COLLAR (Ref #4)
4
Part #35103-MR1-000
COVER (Ref #5)
5
Part #35110-MZ5-000
Key, blank (type2) (Ref #6)
6
Part #35122-MR1-770
Key, blank (type1) (Ref #6)
6
Part #35121-MR1-770
Cover,r side (Ref #7)
7
Part #83500-KGB-610
Grommet,side cove (Ref #8)
8
Part #83501-KGB-610
Grommet,side cove (Ref #8)
8
Part #83501-KGB-610
Grommet,side cove (Ref #8)
8
Part #83501-KGB-610
Grommet,side cove (Ref #8)
8
Part #83501-KGB-610
Cover,l side (Ref #10)
10
Part #83600-KGB-610
Bag, owner`s manual (Ref #11)
11
Part #83642-ML0-000
Tape, magic (female) (25x50) (Ref #12)
12
Part #83643-355-300
Tape, magic (female) (25x50) (Ref #12)
12
Part #83643-355-300
Tape, magic (female) (25x50) (Ref #12)
12
Part #83643-355-300
Tape, magic (female) (25x50) (Ref #12)
12
Part #83643-355-300
SCREW,SIDE COVER (Ref #13)
13
Part #90105-GN5-730
Bolt, torx (6x14) (Ref #14)
14
Part #90107-KCR-000
Screw, rr. cover (Ref #15)
15
Part #90114-GB6-920
