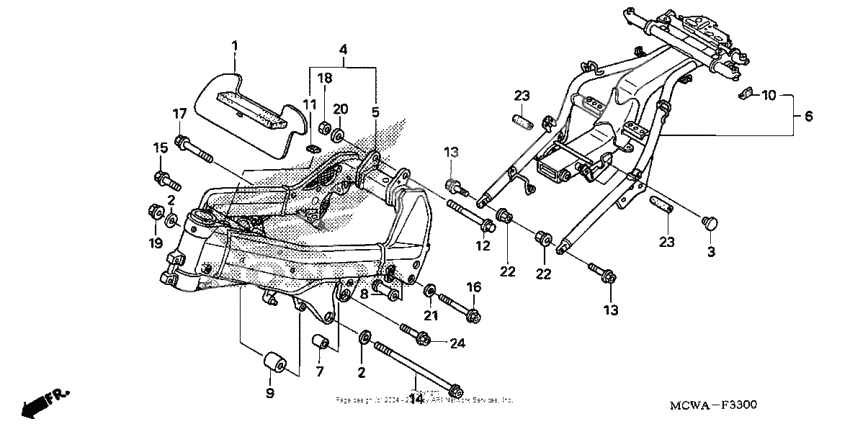

Frame
Frame
Guard, air cleaner (Ref #1)
1
Part #19036-MCW-D00
Washer a, fr. disk (Ref #2)
2
Part #45224-KV3-951
Washer a, fr. disk (Ref #2)
2
Part #45224-KV3-951
Washer a, fr. disk (Ref #2)
2
Part #45224-KV3-951
Washer a, fr. disk (Ref #2)
2
Part #45224-KV3-951
Rubber, stopper (Ref #3)
3
Part #47117-196-000
Frame (Ref #5)
5
Part #50100-MCW-L00
Rail set, seat (Ref #6)
6
Part #50200-MCW-D02
Collar, eng hgr (Ref #7)
7
Part #50355-MBG-000
Collar, eng hgr (Ref #8)
8
Part #50356-MBG-000
Collar, eng hgr (Ref #9)
9
Part #50357-MBG-000
Rubber, single seat (Ref #10)
10
Part #77226-MZ7-300
Bolt, flg (10x115) (Ref #12)
12
Part #90018-399-010
Болт (Ref #13)
13
Part #90101-MBW-000
Болт (Ref #13)
13
Part #90101-MBW-000
Болт (Ref #13)
13
Part #90101-MBW-000
Болт (Ref #13)
13
Part #90101-MBW-000
Bolt, flg (12x357) (Ref #14)
14
Part #90104-MCW-D00
Bolt (10x47) (Ref #15)
15
Part #90110-MAT-000
Bolt, flg (10x100) (Ref #16)
16
Part #90155-MCW-D00
Болт (Ref #17)
17
Part #90162-MCJ-000
Nut, hex. (10mm) (Ref #18)
18
Part #90308-GAH-000
Гайка (Ref #19)
19
Part #90367-SL0-000
Washer, 10mm (Ref #20)
20
Part #90465-MM9-000
Washer, plain, 10mm (Ref #21)
21
Part #90502-MM8-610
Гайка (Ref #22)
22
Part #94050-10000
Гайка (Ref #22)
22
Part #94050-10000
Гайка (Ref #22)
22
Part #94050-10000
Гайка (Ref #22)
22
Part #94050-10000
Bulk hose (7.3x1000) (Ref #23)
23
Part #95005-750-0120M
Bulk hose (7.3x1000) (Ref #23)
23
Part #95005-750-0120M
Bulk hose (7.3x1000) (Ref #23)
23
Part #95005-750-0120M
Bulk hose (7.3x1000) (Ref #23)
23
Part #95005-750-0120M
Болт (Ref #24)
24
Part #90151-HC5-000
Bolt, flange, 10x65 (Ref #24)
24
Part #95801-1006500
