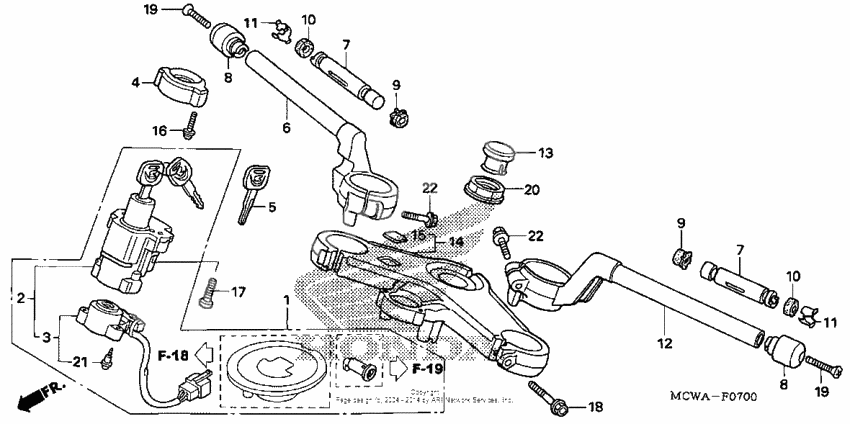

Handlebar + top bridge
Handlebar + top bridge
Отсутствующе (Ref #1)
1
Part #35010-MCW-L61
Switch assy (Ref #2)
2
Part #35100-MCW-L60
Base, contact (Ref #3)
3
Part #35101-MCW-D60
COVER (Ref #4)
4
Part #35106-MCW-L60
Заготовка ключа (type1) (Ref #5)
5
Part #35121-MAS-G01
Handlebar, r. (Ref #6)
6
Part #53100-MCW-D00
Weight, handlebar (Ref #7)
7
Part #53105-KV3-000
Weight, handlebar (Ref #7)
7
Part #53105-KV3-000
Weight, handlebar (Ref #7)
7
Part #53105-KV3-000
Weight, handlebar (Ref #7)
7
Part #53105-KV3-000
Weight, handlebar (Ref #8)
8
Part #53105-MN4-010
Weight, handlebar (Ref #8)
8
Part #53105-MN4-010
Weight, handlebar (Ref #8)
8
Part #53105-MN4-010
Weight, handlebar (Ref #8)
8
Part #53105-MN4-010
Rubber a (Ref #9)
9
Part #53106-KT7-000
Rubber a (Ref #9)
9
Part #53106-KT7-000
Rubber a (Ref #9)
9
Part #53106-KT7-000
Rubber a (Ref #9)
9
Part #53106-KT7-000
RUBBER (Ref #10)
10
Part #53106-MJ0-000
RUBBER (Ref #10)
10
Part #53106-MJ0-000
RUBBER (Ref #10)
10
Part #53106-MJ0-000
RUBBER (Ref #10)
10
Part #53106-MJ0-000
RING (Ref #11)
11
Part #53108-MAT-000
RING (Ref #11)
11
Part #53108-MAT-000
RING (Ref #11)
11
Part #53108-MAT-000
RING (Ref #11)
11
Part #53108-MAT-000
Handlebar, l. (Ref #12)
12
Part #53150-MCW-D00
Cap, steering nut (Ref #13)
13
Part #53232-MJ4-670
Bridge, fork top (Ref #14)
14
Part #53300-MCW-D20
Emblem, product (Ref #15)
15
Part #86150-KPG-901
ВИНТ С ШАЙБОЙ (Ref #16)
16
Part #90020-MBW-610
Bolt, one-way (8mm) (Ref #17)
17
Part #90107-MBG-000
Screw, oval (6x65) (Ref #19)
19
Part #90191-KBG-000
Screw, oval (6x65) (Ref #19)
19
Part #90191-KBG-000
Screw, oval (6x65) (Ref #19)
19
Part #90191-KBG-000
Screw, oval (6x65) (Ref #19)
19
Part #90191-KBG-000
Nut, steering stem (Ref #20)
20
Part #90304-MJ4-670
Screw, tap (3x16) (Ref #21)
21
Part #91059-KY2-711
Болт (Ref #22)
22
Part #96300-0803500
Болт (Ref #22)
22
Part #96300-0803500
Болт (Ref #22)
22
Part #96300-0803500
Болт (Ref #22)
22
Part #96300-0803500
