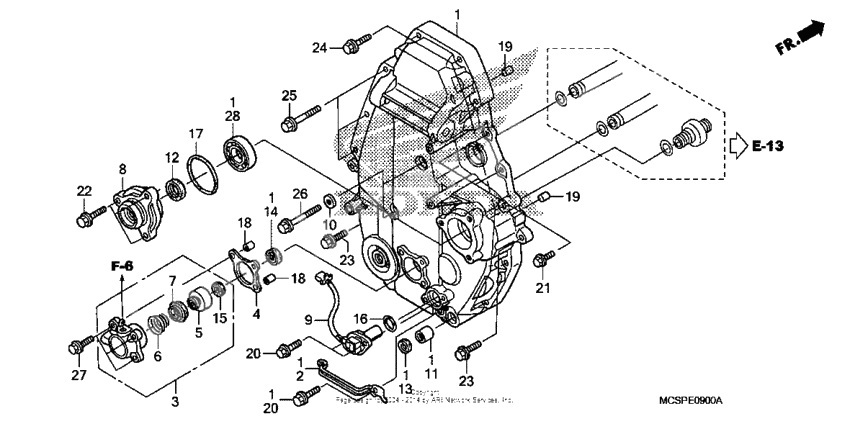

Rear crankcase cover
Rear crankcase cover
Clamp b, drain hose (Ref #2)
2
Part #21114-MCS-000
Cylinder assy. (Ref #3)
3
Part #22860-MCS-000
Gskt, slave cylinder (Ref #4)
4
Part #22862-MGJ-D00
PISTON (Ref #5)
5
Part #22863-MJ8-003
Пружина (Ref #6)
6
Part #22864-MT7-016
Cup, piston (Ref #7)
7
Part #22865-MJ8-003
HOLDER (Ref #8)
8
Part #23751-MCS-000
Sensor assy., speed (Ref #9)
9
Part #37700-MCS-003
Шайба (Ref #10)
10
Part #90463-MCS-000
Bearing (14x22x16) (Ref #11)
11
Part #91106-KM1-013
Oil seal (28x46x7) (Ref #12)
12
Part #91201-MV1-003
Oil seal, 14x22x5 (Ref #13)
13
Part #91203-KK3-830
Oil seal (8x25x8) (Ref #14)
14
Part #91204-MB0-013
Oil seal (8x18x5) (Ref #15)
15
Part #91209-MB0-003
O-ring, 18.1x3.6 (Ref #16)
16
Part #91302-MAL-601
O-ring, 66mm (Ref #17)
17
Part #91351-881-000
Dowel pin (Ref #18)
18
Part #94301-08100
Dowel pin (Ref #18)
18
Part #94301-08100
Dowel pin (Ref #18)
18
Part #94301-08100
Dowel pin (Ref #18)
18
Part #94301-08100
Dowel pin (Ref #19)
19
Part #94303-10160
Dowel pin (Ref #19)
19
Part #94303-10160
Dowel pin (Ref #19)
19
Part #94303-10160
Dowel pin (Ref #19)
19
Part #94303-10160
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #20)
20
Part #95701-060-140-0
BOLT (Ref #21)
21
Part #95701-060-200-0
Bolt, flange, 8x28 (Ref #22)
22
Part #95701-0802800
Bolt, flange, 8x32 (Ref #23)
23
Part #95701-0803200
Bolt, flange, 8x32 (Ref #23)
23
Part #95701-0803200
Bolt, flange, 8x32 (Ref #23)
23
Part #95701-0803200
Bolt, flange, 8x32 (Ref #23)
23
Part #95701-0803200
Bolt, flange, 8x40 (Ref #24)
24
Part #95701-0804000
BOLT (Ref #25)
25
Part #95701-080-750-0
Bolt, flange, 8x85 (Ref #26)
26
Part #95701-0808500
Bolt, flange, 6x22 (Ref #27)
27
Part #96001-0602200
Bearing (6206) (Ref #28)
28
Part #96100-6206300
-
-
-
-
