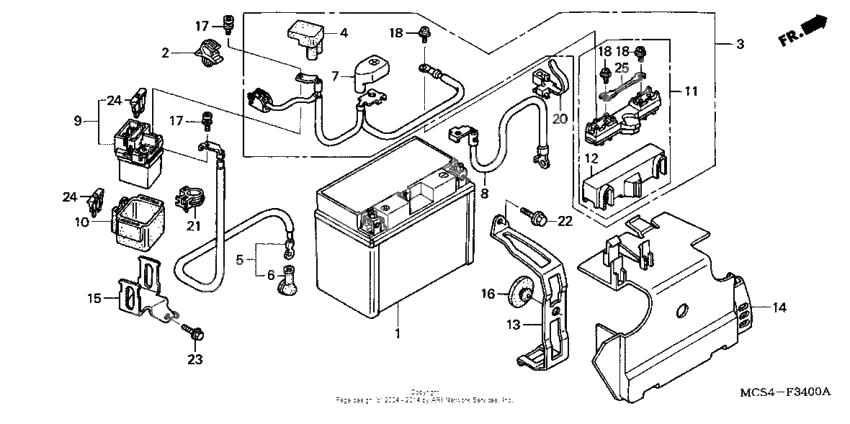

Battery
Battery
Аккумулятор (Ref #1)
1
Part #31500-MCR-D02AH
Clip b, harness (Ref #2)
2
Part #32172-GJ1-003
Cable (Ref #3)
3
Part #32401-MCS-640
COVER (Ref #4)
4
Part #32406-MT4-010
Кабель стартера (Ref #5)
5
Part #32410-MCS-G00
Cover, starter motor terminal (Ref #6)
6
Part #32411-230-000
COVER (Ref #7)
7
Part #32414-MCF-000
Cable (Ref #8)
8
Part #32601-MCS-G00
Switch assy (Ref #9)
9
Part #35850-MT4-003
RUBBER (Ref #10)
10
Part #35856-MBG-003
Box, reverse fuse (Ref #11)
11
Part #38260-MN5-003
Cover, fuse box (Ref #12)
12
Part #38265-MN5-003
Комплект аккумулятора (Ref #13)
13
Part #50320-MCS-G00
Крышка аккамулятора (Ref #14)
14
Part #80108-MCS-G00
BRACKET (Ref #15)
15
Part #80114-MCS-G00
Rubber, battery box (Ref #16)
16
Part #83618-323-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #17)
17
Part #90111-MR5-000
Clip, harness band (15) (Ref #20)
20
Part #90690-GHB-601
Clip, cable, 20mm (Ref #21)
21
Part #90690-GHB-661
BOLT (Ref #22)
22
Part #95701-060-120-0
BOLT (Ref #23)
23
Part #96001-060-120-0
Fuse (Ref #24)
24
Part #98200-33000
Fuse (Ref #24)
24
Part #98200-33000
Fuse (Ref #24)
24
Part #98200-33000
Fuse (Ref #24)
24
Part #98200-33000
Fuse (Ref #25)
25
Part #98200-66500
