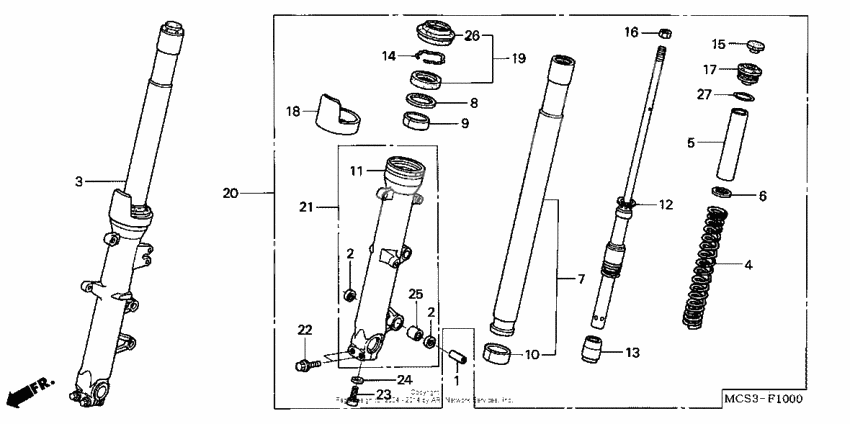

Front fork
Front fork
Collar, pivot (Ref #1)
1
Part #45452-MZ2-000
Dust seal, brake cam (Ref #2)
2
Part #45134-KB7-005
Dust seal, brake cam (Ref #2)
2
Part #45134-KB7-005
Dust seal, brake cam (Ref #2)
2
Part #45134-KB7-005
Dust seal, brake cam (Ref #2)
2
Part #45134-KB7-005
Fork assy,, r, fr, (Ref #3)
3
Part #51400-MCS-305
Spring, fr. fork (Ref #4)
4
Part #51401-MCS-G01
Collar, spring (Ref #5)
5
Part #51402-MCS-G01
Plate, spring joint (Ref #6)
6
Part #51403-MBR-003
Pipe, fr. fork (Ref #7)
7
Part #51410-MCS-G02
Ring, back-up (Ref #8)
8
Part #51412-KZ3-003
Bush, guide (Ref #9)
9
Part #51414-MCH-003
Bush, slider (Ref #10)
10
Part #51415-MCS-G01
Case, r. (lower) (Ref #11)
11
Part #51420-MCS-G01
Damper, fr. (Ref #12)
12
Part #51430-MCS-G02
Piece, oil lock (Ref #13)
13
Part #51432-MCS-G01
RING (Ref #14)
14
Part #51447-KZ3-003
Cap, fork pipe (Ref #15)
15
Part #51449-MN5-003
Nut, hex. (10mm) (Ref #16)
16
Part #51451-MAJ-G41
Bolt, fr. fork (Ref #17)
17
Part #51454-MCS-G01
Protector, fork pipe (Ref #18)
18
Part #51460-MCS-G01
Seal set, fr. fork (Ref #19)
19
Part #51490-MCA-003
Fork assy,, l, fr, (Ref #20)
20
Part #51500-MCS-305
Case, l. (lower) (Ref #21)
21
Part #51520-MCS-G01
Bolt, socket (8x45) (Ref #22)
22
Part #90103-MT7-000
Bolt, socket (8mm) (Ref #23)
23
Part #90117-MCS-G01
Шайба (Ref #24)
24
Part #90544-283-000
Bearing (14x20x20) (Ref #25)
25
Part #91051-MCW-D01
DUST SEAL (Ref #26)
26
Part #91254-MCA-003
Прокладка (Ref #27)
27
Part #91356-MW0-003
