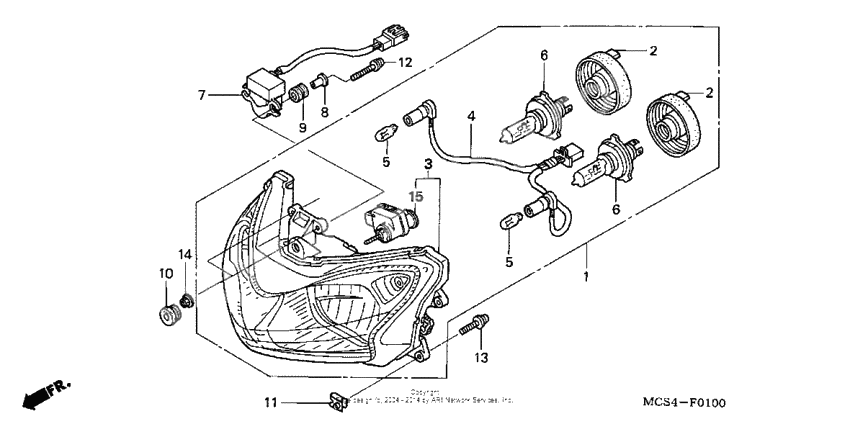

Headlight
Headlight
Headlight assy (Ref #1)
1
Part #33100-MCS-305
Cover, rubber (Ref #2)
2
Part #33112-MBW-D21
Cover, rubber (Ref #2)
2
Part #33112-MBW-D21
Cover, rubber (Ref #2)
2
Part #33112-MBW-D21
Cover, rubber (Ref #2)
2
Part #33112-MBW-D21
Блок освещения (Ref #3)
3
Part #33120-MCS-305
SOCKET (Ref #4)
4
Part #33140-MCJ-D00
Bulb (Ref #5)
5
Part #33301-SA0-741
Bulb (Ref #5)
5
Part #33301-SA0-741
Bulb (Ref #5)
5
Part #33301-SA0-741
Bulb (Ref #5)
5
Part #33301-SA0-741
Bulb (12v45/45w) (Ref #6)
6
Part #34901-MS2-672
Bulb (12v45/45w) (Ref #6)
6
Part #34901-MS2-672
Bulb (12v45/45w) (Ref #6)
6
Part #34901-MS2-672
Bulb (12v45/45w) (Ref #6)
6
Part #34901-MS2-672
Sensor, bank angle (Ref #7)
7
Part #35161-MCS-G02
COLLAR (Ref #8)
8
Part #35162-MN5-003
GROMMET (Ref #9)
9
Part #35163-MN5-003
Уплотнение (Ref #10)
10
Part #83601-MN5-000
Гайка (Ref #11)
11
Part #90306-SA0-000
Screw-washer (4x30) (n/a: use (Ref #12)
12
Part #93893-0403007
Screw-washer (5x22) (Ref #13)
13
Part #93894-0502207
Nut, flange, 4mm (Ref #14)
14
Part #9405004000
Adjuster unit, r. (Ref #15)
15
Part #33130-MCA-003
