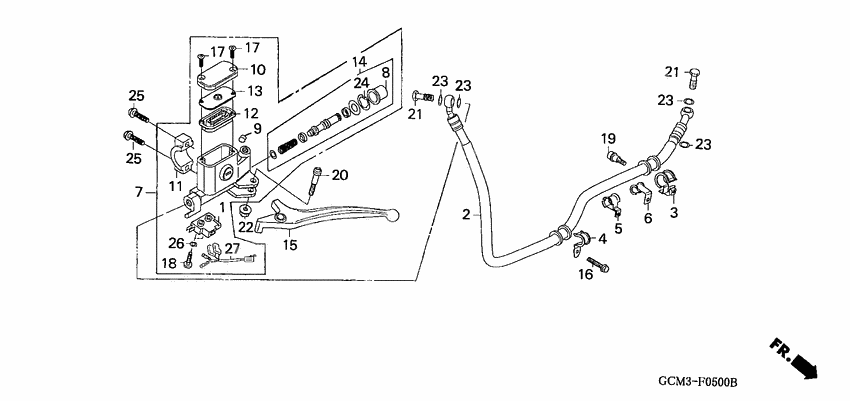

Rear brake master cylinder
Rear brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-KFG-000
Hose comp,rr brk (Ref #2)
2
Part #43126-GCM-901
Guide comp,rr brk (Ref #3)
3
Part #43156-GCM-900
Clamper,brk hose (Ref #4)
4
Part #43157-GCM-900
Clamper b,brk hos (Ref #5)
5
Part #43158-GCM-900
Clamper c,brk hos (Ref #6)
6
Part #43159-GCM-900
Sub assy,rr m/c (Ref #7)
7
Part #43510-GCM-901
Boot comp. (Ref #8)
8
Part #45504-GBM-751
PROTECTOR (Ref #9)
9
Part #45512-GBM-751
Cap master cylinder (Ref #10)
10
Part #45513-GBM-751
Holder m/c (Ref #11)
11
Part #45517-GBM-751
DIAPHRAGM (Ref #12)
12
Part #45520-GBM-751
Пластина (Ref #13)
13
Part #45521-GBM-751
Piston set,fr m/c (Ref #14)
14
Part #45530-GCM-901
Lever,l strg hndl (Ref #15)
15
Part #53178-GCM-900
Bolt (6x18) (Ref #16)
16
Part #90002-GAV-701
Screw flat 4x12 (Ref #17)
17
Part #90101-GBM-751
Screw flat 4x12 (Ref #17)
17
Part #90101-GBM-751
Screw flat 4x12 (Ref #17)
17
Part #90101-GBM-751
Screw flat 4x12 (Ref #17)
17
Part #90101-GBM-751
Screw 4x12 (Ref #18)
18
Part #90102-GBM-751
BOLT (Ref #19)
19
Part #90112-SR4-000
Bolt,handle lever (Ref #20)
20
Part #90114-KR1-760
Oil bolt,10x22 (Ref #21)
21
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #21)
21
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #21)
21
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #21)
21
Part #90145-MY5-H20
Nut,flange 6mm (Ref #22)
22
Part #90301-GBM-751
Circlip (Ref #24)
24
Part #90651-GBM-751
Болт (Ref #25)
25
Part #96001-0602207
Болт (Ref #25)
25
Part #96001-0602207
Болт (Ref #25)
25
Part #96001-0602207
Болт (Ref #25)
25
Part #96001-0602207
Washer 4mm (Ref #26)
26
Part #90502-GBM-751
Sub cord,stop sw. (Ref #27)
27
Part #32102-GCM-900
