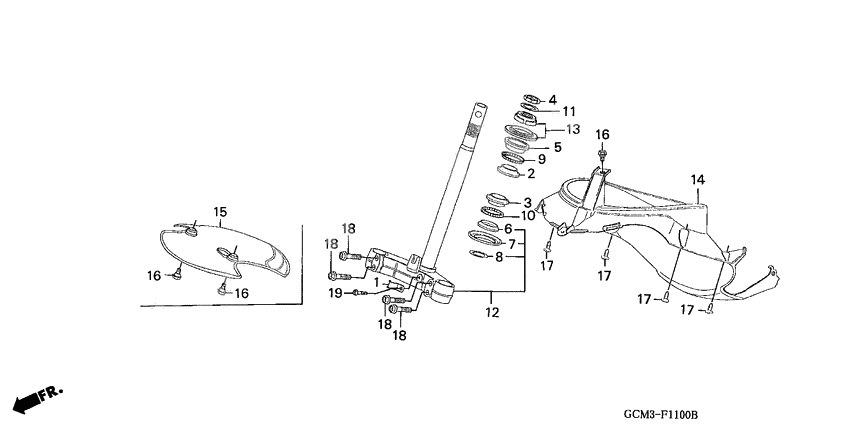

Steering stem
Steering stem
Clip,spdmt cable (Ref #1)
1
Part #44834-GCM-900
Race, steering ball (Ref #2)
2
Part #50301-268-010
Race, steering ball (Ref #3)
3
Part #50302-268-010
Гайка (Ref #4)
4
Part #50306-GN5-830
Race, steering cone (Ref #5)
5
Part #53211-268-010
Race, steering cone (Ref #6)
6
Part #53212-250-010
DUST SEAL (Ref #7)
7
Part #53214-250-000
Шайба (Ref #8)
8
Part #53215-250-000
Ball, steering steel (Ref #9)
9
Part #53215-GBK-003
Ball, steering steel (Ref #10)
10
Part #53215-KL8-901
Washer,stem nut (Ref #11)
11
Part #53216-GN5-830
Stem set,strg (Ref #12)
12
Part #53219-GCM-900
Thread comp,strg (Ref #13)
13
Part #53220-GCM-900
Fender,inner*nh1* (Ref #14)
14
Part #61101-GCM-900ZD
Bolt, flange, 6x10 (Ref #19)
19
Part #96001-060-100-0
