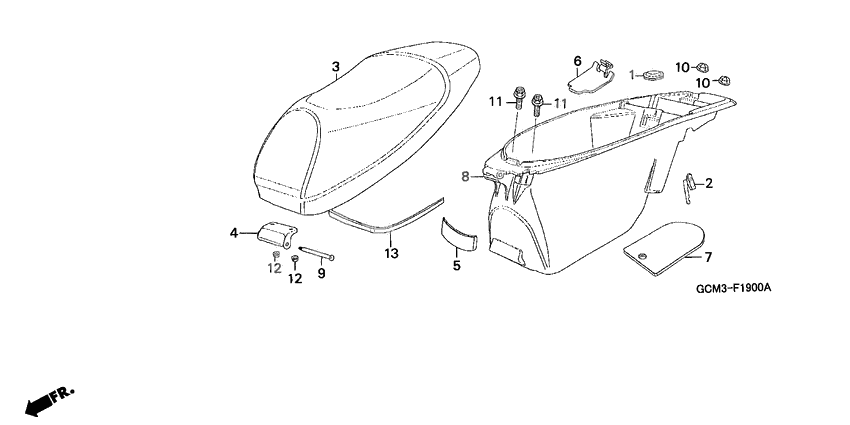

Seat/luggage box
Seat/luggage box
Rubber oil seal (Ref #1)
1
Part #55121-GBM-850
Hook, helmet (Ref #2)
2
Part #77106-GAH-000
Seat comp,*type8* (Ref #3)
3
Part #77200-GCM-H00ZB
Seat comp,*type7* (Ref #3)
3
Part #77200-GCM-H00ZA
Hinge,seat (Ref #4)
4
Part #77201-GAH-000
Cushion,luggage b (Ref #5)
5
Part #81252-GW2-000
COVER,LUGGAGE BOX (Ref #6)
6
Part #81255-GCM-900
Щит головки (Ref #7)
7
Part #81256-GCM-900
Box assy,luggage (Ref #8)
8
Part #81260-GCM-900
Pin, hinge (Ref #9)
9
Part #90106-GAH-000
Гайка (Ref #10)
10
Part #90301-693-000
Гайка (Ref #10)
10
Part #90301-693-000
Гайка (Ref #10)
10
Part #90301-693-000
Гайка (Ref #10)
10
Part #90301-693-000
Bolt-washer (Ref #11)
11
Part #93404-060-200-7
Bolt-washer (Ref #11)
11
Part #93404-060-200-7
Bolt-washer (Ref #11)
11
Part #93404-060-200-7
Bolt-washer (Ref #11)
11
Part #93404-060-200-7
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
Гайка (Ref #12)
12
Part #94050-06000
Воздухопровод радиатора (Ref #13)
13
Part #77115-GCM-900
