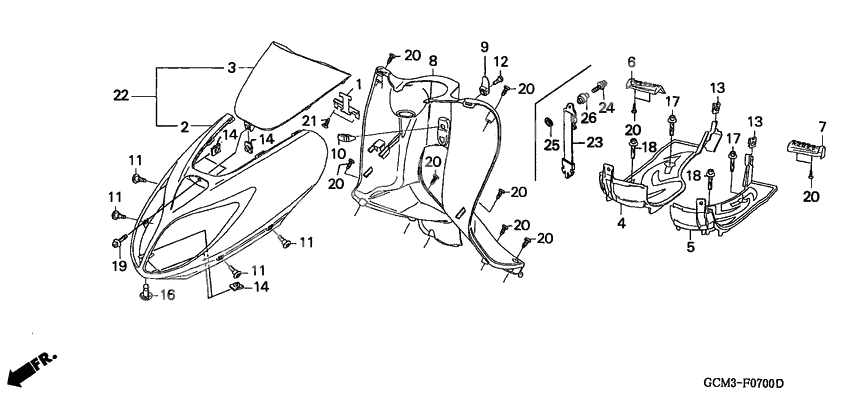

Front cover shutter
Front cover shutter
Stay,cdi (Ref #1)
1
Part #30405-GCM-900
Cover,front*r127* (Ref #2)
2
Part #64301-GCM-900ZM
Cover,fro*nh426m* (Ref #2)
2
Part #64301-GCM-900ZL
Cover,front *nh1* (Ref #2)
2
Part #64301-GCM-900ZJ
Cover,front*y153* (Ref #2)
2
Part #64301-GCM-900ZH
Cover,front *nh1* (Ref #3)
3
Part #64302-GCM-900ZH
Cover,fr*nh229mu* (Ref #3)
3
Part #64302-GCM-900ZJ
Panel,r floo*nh1* (Ref #4)
4
Part #64311-GCM-900ZA
Panel,l floo*nh1* (Ref #5)
5
Part #64312-GCM-900ZA
Cover,inner *nh1* (Ref #8)
8
Part #81131-GCM-900ZA
Hook, luggage *nh1* (Ref #9)
9
Part #81132-GAH-000ZW
Stopper,luggage (Ref #10)
10
Part #81133-GAH-000
Screw, special (6mm) (Ref #12)
12
Part #90164-MR4-900
Nut, spring, 6mm (Ref #13)
13
Part #90320-747-000
Nut, spring, 6mm (Ref #13)
13
Part #90320-747-000
Nut, spring, 6mm (Ref #13)
13
Part #90320-747-000
Nut, spring, 6mm (Ref #13)
13
Part #90320-747-000
Клипса крепления бампера (Ref #16)
16
Part #90683-GAZ-003
Bolt-washer (Ref #17)
17
Part #93404-060-160-7
Bolt-washer (Ref #17)
17
Part #93404-060-160-7
Bolt-washer (Ref #17)
17
Part #93404-060-160-7
Bolt-washer (Ref #17)
17
Part #93404-060-160-7
Bolt-washer (Ref #18)
18
Part #93404-060-250-7
Bolt-washer (Ref #18)
18
Part #93404-060-250-7
Bolt-washer (Ref #18)
18
Part #93404-060-250-7
Bolt-washer (Ref #18)
18
Part #93404-060-250-7
Screw-washer (Ref #19)
19
Part #93894-050-160-7
Screw, tapping, 5x12 (Ref #21)
21
Part #93903-35210
