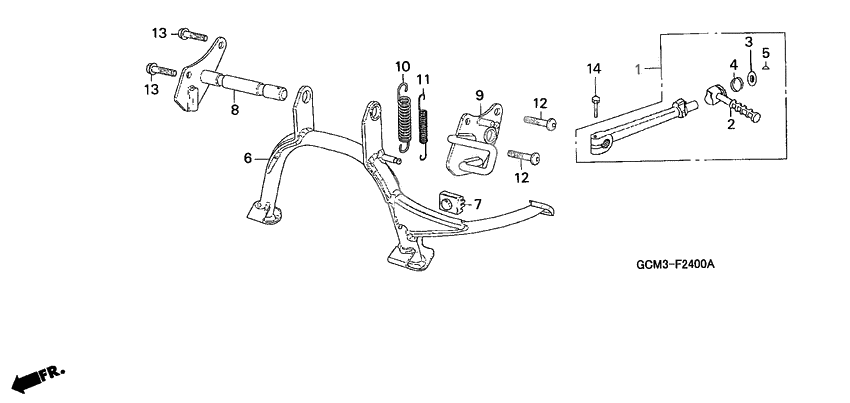

Pedal/stand
Pedal/stand
Arm assy,kick sta (Ref #1)
1
Part #28300-GCM-900
Pedal, kick starter (Ref #2)
2
Part #28302-GY3-000
Washer,kick start (Ref #3)
3
Part #28303-GJ8-000
Пружина (Ref #4)
4
Part #28322-197-000
CLIP (Ref #5)
5
Part #28324-197-000
Stand comp,main (Ref #6)
6
Part #50500-GCM-900
RUBBER (Ref #7)
7
Part #50505-GR1-000
Brkt,r.m.stand (Ref #8)
8
Part #50506-GCM-900
Brkt set,l.m.stan (Ref #9)
9
Part #50507-GCM-306
Spring, main stand (Ref #10)
10
Part #50520-GW2-000
Spg.k,main stand (Ref #11)
11
Part #50521-GBY-910
Bolt, one-way (8mm) (Ref #12)
12
Part #90107-MBG-000
Bolt, one-way (8mm) (Ref #12)
12
Part #90107-MBG-000
Bolt, one-way (8mm) (Ref #12)
12
Part #90107-MBG-000
Bolt, one-way (8mm) (Ref #12)
12
Part #90107-MBG-000
Bolt,flange 8x25 (Ref #13)
13
Part #95701-080-250-8
Bolt,flange 8x25 (Ref #13)
13
Part #95701-080-250-8
Bolt,flange 8x25 (Ref #13)
13
Part #95701-080-250-8
Bolt,flange 8x25 (Ref #13)
13
Part #95701-080-250-8
BOLT (Ref #14)
14
Part #95701-060-220-7
