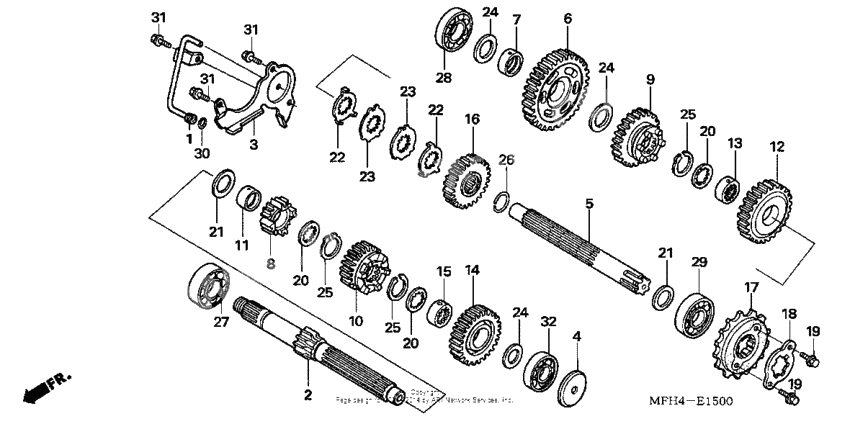

Трансмиссия
Трансмиссия
Pipe, oil feed (Ref #1)
1
Part #15520-MS6-000
Mainshaft (14t) (Ref #2)
2
Part #23210-MZ8-L50
PLATE (Ref #3)
3
Part #23212-MS6-920
Маслоотражатель (Ref #4)
4
Part #23219-MF5-000
Countershaft (Ref #5)
5
Part #23220-MZ8-L50
Шестерня (Ref #6)
6
Part #23421-MR1-000
Collar (20x11.8) (Ref #7)
7
Part #23422-MB0-010
Шестерня (Ref #8)
8
Part #23431-MR1-000
Шестерня (Ref #9)
9
Part #23441-MR1-000
Шестерня (Ref #10)
10
Part #23451-MR1-000
Втулка (Ref #11)
11
Part #23455-MM9-000
Шестерня (Ref #12)
12
Part #23461-MR1-000
Collar (25x28x10.8) (Ref #13)
13
Part #23462-MR1-000
Шестерня (Ref #14)
14
Part #23471-MR1-000
Collar (25x28x15) (Ref #15)
15
Part #23472-MR1-000
Шестерня (Ref #16)
16
Part #23481-MR1-000
Звездочка (16t) (Ref #17)
17
Part #23801-MN8-000
Plate, fixing (Ref #18)
18
Part #23811-MN8-000
Bolt, flange, 6x12 (Ref #19)
19
Part #90118-958-003
Bolt, flange, 6x12 (Ref #19)
19
Part #90118-958-003
Bolt, flange, 6x12 (Ref #19)
19
Part #90118-958-003
Bolt, flange, 6x12 (Ref #19)
19
Part #90118-958-003
Washer, thrust, 25mm (Ref #21)
21
Part #90456-MA6-000
Washer, thrust, 25mm (Ref #21)
21
Part #90456-MA6-000
Washer, thrust, 25mm (Ref #21)
21
Part #90456-MA6-000
Washer, thrust, 25mm (Ref #21)
21
Part #90456-MA6-000
Washer, lock (25mm) (Ref #22)
22
Part #90462-MR7-000
Washer, lock (25mm) (Ref #22)
22
Part #90462-MR7-000
Washer, lock (25mm) (Ref #22)
22
Part #90462-MR7-000
Washer, lock (25mm) (Ref #22)
22
Part #90462-MR7-000
Шайба (Ref #23)
23
Part #90465-MR7-000
Шайба (Ref #23)
23
Part #90465-MR7-000
Шайба (Ref #23)
23
Part #90465-MR7-000
Шайба (Ref #23)
23
Part #90465-MR7-000
Clip (25mm) (Ref #26)
26
Part #90602-MR1-000
Bearing (63/22) (Ref #27)
27
Part #91002-KY4-901
Bearing (6204u) (Ref #28)
28
Part #96140-620-401-0
Bearing (5205) (Ref #29)
29
Part #91014-969-003
O-ring, 5.6x1.9 (arai) (Ref #30)
30
Part #91318-ME5-003
Bearing, radial ball, 6204 (Ref #32)
32
Part #96100-6204000
