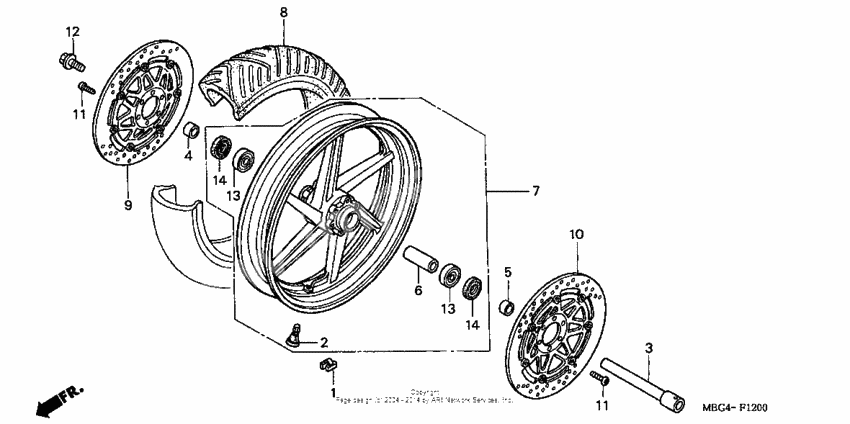

Front wheel
Front wheel
Грузик (Ref #1)
1
Part #42706-MB0-000
Грузик (Ref #1)
1
Part #42705-MCF-D60
Грузик (Ref #1)
1
Part #42704-MCF-D60
Клапан, обод колеса (Ref #2)
2
Part #42753-ML7-004
Axle, fr. wheel (Ref #3)
3
Part #44301-MBG-000
Collar, r. fr. (Ref #4)
4
Part #44311-MAT-E20
Colr, fr. wheel side (Ref #5)
5
Part #44311-MS2-000
Collar, fr (Ref #6)
6
Part #44620-MBG-000
Wheel sub-assy., fr. (Ref #7)
7
Part #44650-MBG-010
Tire (120/70zr17m/c) (Ref #8)
8
Part #44711-MCW-D02
Disk, r. fr. brake (Ref #9)
9
Part #45120-MCW-H11
Disk, l. fr. brake (Ref #10)
10
Part #45220-MCW-H01
Bolt (6x17) (Ref #11)
11
Part #90106-MBB-000
Bolt (6x17) (Ref #11)
11
Part #90106-MBB-000
Bolt (6x17) (Ref #11)
11
Part #90106-MBB-000
Bolt (6x17) (Ref #11)
11
Part #90106-MBB-000
Bolt, fr. axle (Ref #12)
12
Part #90305-ML7-000
Bearing (6204uu) (Ref #13)
13
Part #91052-MAE-004
Bearing (6204uu) (Ref #13)
13
Part #91052-MAE-004
Bearing (6204uu) (Ref #13)
13
Part #91052-MAE-004
Bearing (6204uu) (Ref #13)
13
Part #91052-MAE-004
Oil seal (28x47.2x7) (Ref #14)
14
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #14)
14
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #14)
14
Part #91252-MC4-013
Oil seal (28x47.2x7) (Ref #14)
14
Part #91252-MC4-013
