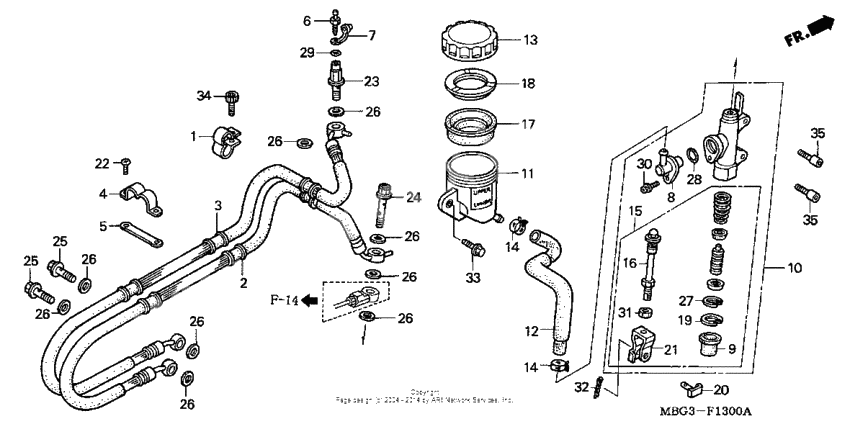

Rear brake master cylinder
Rear brake master cylinder
Хомут (Ref #1)
1
Part #43156-MBG-000
Hose, rr. brake main (Ref #2)
2
Part #43310-MBG-003
Sub-hose, rr. brake (Ref #3)
3
Part #43311-MBG-003
Clamp, brake hose (Ref #4)
4
Part #43312-MBG-000
Plate, brake hose (Ref #5)
5
Part #43313-MBG-000
Screw, bleeder (Ref #6)
6
Part #43352-MG9-006
CAP (Ref #7)
7
Part #43353-461-771
Коннектор (Ref #8)
8
Part #43503-MB2-006
Ботинок (Ref #9)
9
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #10)
10
Part #43510-MBG-006
Стакан (Ref #11)
11
Part #43511-MA6-006
Hose, rr. (Ref #12)
12
Part #43512-MBG-006
Cap, oil cup (Ref #13)
13
Part #43513-MY1-006
Clamp, master cylinder oil hose (Ref #14)
14
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #14)
14
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #14)
14
Part #43514-445-771
Clamp, master cylinder oil hose (Ref #14)
14
Part #43514-445-771
Piston set, rr. (Ref #15)
15
Part #43520-MBG-006
Штанга (Ref #16)
16
Part #43530-MBG-006
DIAPHRAGM (Ref #17)
17
Part #45520-300-000
Пластина (Ref #18)
18
Part #45521-MJ6-006
Circlip (Ref #19)
19
Part #46182-500-013
Pin, brake rod (Ref #20)
20
Part #46503-MAL-000
Joint, brake rod (Ref #21)
21
Part #46504-MAL-601
Screw, pan (5x8) (Ref #22)
22
Part #90115-KV3-700
Bolt b, oil (10x22) (Ref #23)
23
Part #90145-MBG-003
Bolt, oil (10x34) (Ref #24)
24
Part #90145-MR8-014
Bolt, oil (10x22) (Ref #25)
25
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #25)
25
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #25)
25
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #25)
25
Part #90145-MS9-612
Стопорное кольцо поршня (Ref #27)
27
Part #90651-MBG-006
Прокладка (Ref #28)
28
Part #91212-422-006
Прокладка (Ref #29)
29
Part #91355-MG9-006
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Гайка (Ref #31)
31
Part #94002-080-000-S
PIN (Ref #32)
32
Part #94201-20120
BOLT (Ref #33)
33
Part #95701-060-160-7
Bolt, socket (6x20) (Ref #34)
34
Part #96600-0602007
Bolt, socket (6x25) (Ref #35)
35
Part #96700-0602500
Bolt, socket (6x25) (Ref #35)
35
Part #96700-0602500
Bolt, socket (6x25) (Ref #35)
35
Part #96700-0602500
Bolt, socket (6x25) (Ref #35)
35
Part #96700-0602500
