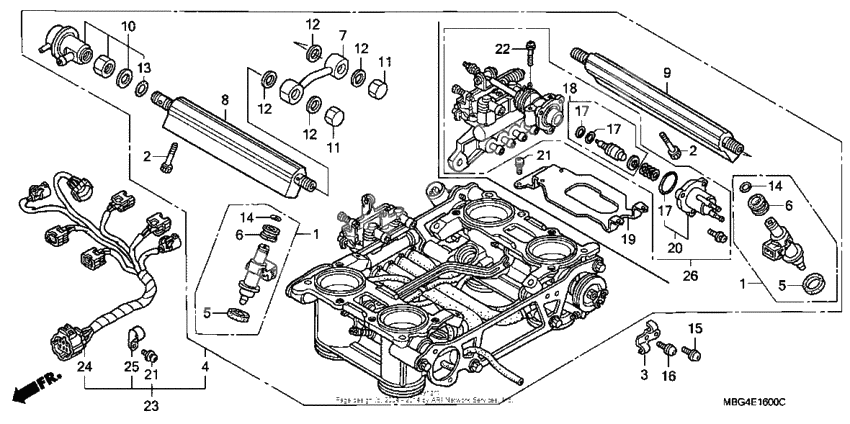

Throttle body assy.
Throttle body assy.
Packing set (Ref #1)
1
Part #06164-PCA-000
Packing set (Ref #1)
1
Part #06164-PCA-000
Packing set (Ref #1)
1
Part #06164-PCA-000
Packing set (Ref #1)
1
Part #06164-PCA-000
BOLT (Ref #2)
2
Part #16080-MBG-000
BOLT (Ref #2)
2
Part #16080-MBG-000
BOLT (Ref #2)
2
Part #16080-MBG-000
BOLT (Ref #2)
2
Part #16080-MBG-000
Stay, wire (Ref #3)
3
Part #16119-ML5-004
Seal ring (Ref #5)
5
Part #16472-P0H-A01
Seal ring (Ref #5)
5
Part #16472-P0H-A01
Seal ring (Ref #5)
5
Part #16472-P0H-A01
Seal ring (Ref #5)
5
Part #16472-P0H-A01
Cushion ring (Ref #6)
6
Part #16473-P10-A01
Cushion ring (Ref #6)
6
Part #16473-P10-A01
Cushion ring (Ref #6)
6
Part #16473-P10-A01
Cushion ring (Ref #6)
6
Part #16473-P10-A01
Pipe, fuel feed (Ref #7)
7
Part #16527-MBG-000
Pipe, fr. fuel (Ref #8)
8
Part #16610-MBG-000
Pipe, rr. fuel (Ref #9)
9
Part #16620-MBG-000
Regulator, pressure (Ref #10)
10
Part #16740-MBG-003
Nut a (Ref #11)
11
Part #90201-PD1-000
Nut a (Ref #11)
11
Part #90201-PD1-000
Nut a (Ref #11)
11
Part #90201-PD1-000
Nut a (Ref #11)
11
Part #90201-PD1-000
Прокладка (Ref #13)
13
Part #91301-PM5-A01
Прокладка (Ref #14)
14
Part #91301-P2F-A01
Прокладка (Ref #14)
14
Part #91301-P2F-A01
Прокладка (Ref #14)
14
Part #91301-P2F-A01
Прокладка (Ref #14)
14
Part #91301-P2F-A01
Screw-washer (4x8) (Ref #15)
15
Part #93892-0400800
Screw-washer, 5x8 (Ref #16)
16
Part #93892-0500800
Element set, wax (Ref #18)
18
Part #16044-MAT-E01
STAY (Ref #19)
19
Part #16169-MBG-D01
Case set, wax (Ref #20)
20
Part #16502-MAT-E01
Screw-washer, 5x10 (Ref #21)
21
Part #93892-0501000
Screw-washer, 5x10 (Ref #21)
21
Part #93892-0501000
Screw-washer, 5x10 (Ref #21)
21
Part #93892-0501000
Screw-washer, 5x10 (Ref #21)
21
Part #93892-0501000
Screw-washer (5x30) (Ref #22)
22
Part #93892-0503010
Корпус (Ref #23)
23
Part #16400-MBG-D01
Sub-harness (Ref #24)
24
Part #32103-MBG-000
Clip (14mm) (Ref #25)
25
Part #90628-750-000
Клапан (Ref #26)
26
Part #16410-MBG-D01
