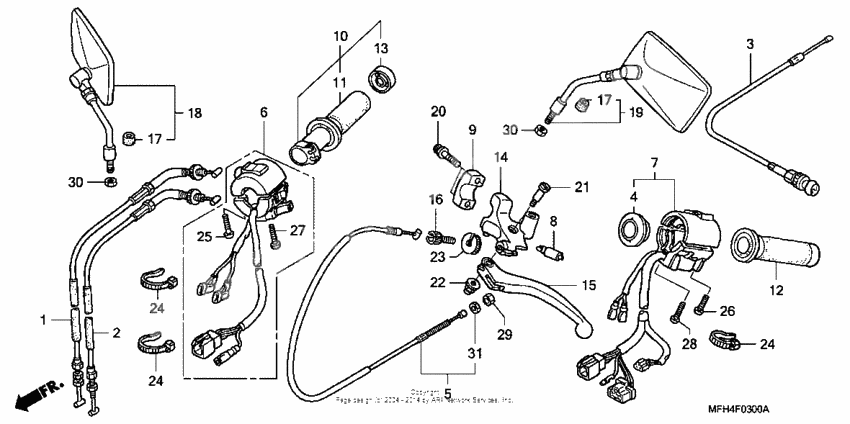

Handle lever + switch + cable
Handle lever + switch + cable
Cable a, throttle (Ref #1)
1
Part #17910-MZ8-G20
Cable b, throttle (Ref #2)
2
Part #17920-MZ8-G20
Cable, choke (Ref #3)
3
Part #17950-MZ8-G20
Адаптер (Ref #4)
4
Part #17962-MR1-000
Cable, clutch (Ref #5)
5
Part #22870-MZ8-G20
Switch, starter stop (Ref #6)
6
Part #35013-KW9-921
Switch, turn signal (Ref #7)
7
Part #35200-MZ8-U40
Switch, fr. lever (Ref #8)
8
Part #35330-413-003
HOLDER (Ref #9)
9
Part #45517-MR1-671
Grip assy., r. (Ref #10)
10
Part #53145-MFR-305
Cap, grip end (Ref #12)
12
Part #53167-MM8-000
Bracket, handlebar (Ref #14)
14
Part #53172-MR1-000
Bolt, cable adj. (Ref #15)
15
Part #53192-268-000
Cover, lock nut (Ref #17)
17
Part #88113-KN8-000
Cover, lock nut (Ref #17)
17
Part #88113-KN8-000
Cover, lock nut (Ref #17)
17
Part #88113-KN8-000
Cover, lock nut (Ref #17)
17
Part #88113-KN8-000
Mirror, r. (Ref #18)
18
Part #88210-MZ8-A20
Mirror, l. (Ref #19)
19
Part #88220-MZ8-A20
Bolt, socket (6x22) (Ref #20)
20
Part #90101-MCL-000
Болт (Ref #21)
21
Part #90113-438-000
Nut, cap, 6mm (Ref #22)
22
Part #90201-415-000
Nut, fixing (Ref #23)
23
Part #90321-MA6-750
Болт (Ref #25)
25
Part #93500-050-200-B
Screw, pan, 5x22 (Ref #26)
26
Part #93500-050220B
Screw, pan, 5x25 (Ref #27)
27
Part #93500-050250B
Screw, pan (5x32) (Ref #28)
28
Part #93500-050320B
Nut, hex. (8mm) (Ref #29)
29
Part #94002-080700S
Nut, hex. (10mm) (Ref #30)
30
Part #9403110020
Nut, hex. (10mm) (Ref #30)
30
Part #9403110020
Nut, hex. (10mm) (Ref #30)
30
Part #9403110020
Nut, hex. (10mm) (Ref #30)
30
Part #9403110020
Nut, hex. (8mm) (Ref #31)
31
Part #94030-08070
