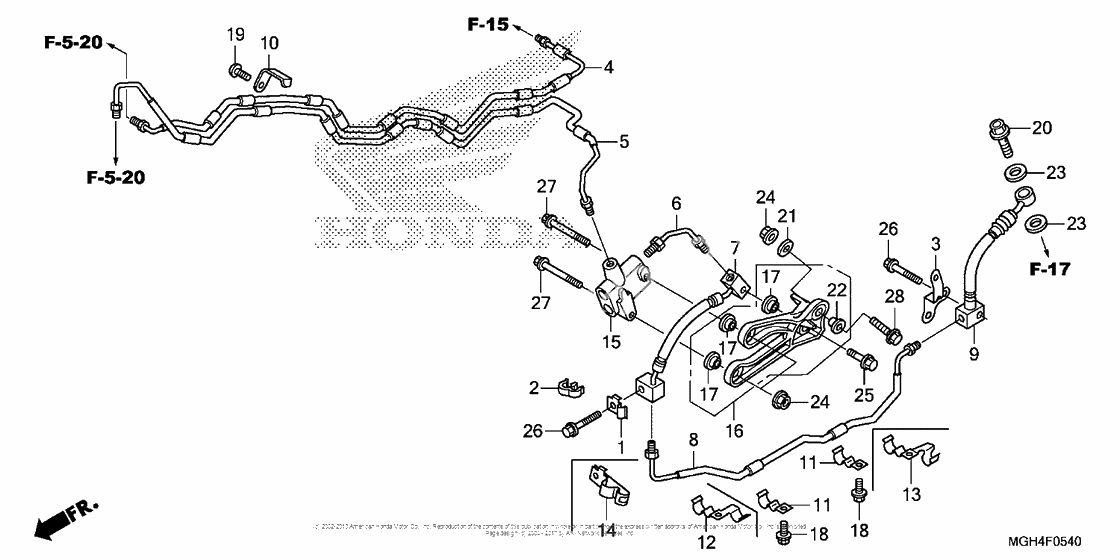

Brake hose
Brake hose
Clamp b, sensor wire (Ref #1)
1
Part #38514-MEJ-J00
Clamp (d8,5) (Ref #2)
2
Part #38516-MGE-003
Stay b (Ref #3)
3
Part #41353-MGH-H20
Pipe a, rr. brake (Ref #4)
4
Part #43311-MGH-640
Pipe b, rr. brake (Ref #5)
5
Part #43312-MGH-640
Pipe c, rr. brake (Ref #6)
6
Part #43313-MGE-000
Hose b, rr, brake (Ref #7)
7
Part #43314-MGE-013
Pipe d, rr. brake (Ref #8)
8
Part #43315-MGH-H20
Hose c, rr. brake (Ref #9)
9
Part #43316-MGH-641
Stay, rr, brake pipe (Ref #10)
10
Part #43317-MGE-000
Хомут (Ref #11)
11
Part #43318-MGE-010
Pcv assy, (Ref #15)
15
Part #46400-MGE-006
Stay, pcv (Ref #16)
16
Part #50160-MGE-000
Collar, fr. fender (Ref #17)
17
Part #61105-MA3-000
Болт (Ref #18)
18
Part #90106-MBZ-G00
Screw, pan (5x15) (Ref #19)
19
Part #90113-MCJ-000
Bolt, oil (10x22) (Ref #20)
20
Part #90145-MS9-612
Washer, 6mm (Ref #21)
21
Part #90485-286-000
Collar, r. fr. cover (Ref #22)
22
Part #90501-KGB-610
Шайба (Ref #23)
23
Part #90545-300-000
Гайка (Ref #24)
24
Part #94050-06000
Bolt, flange, 6x16 (Ref #25)
25
Part #96001-0601607
Болт (Ref #26)
26
Part #96001-0602807
Болт (Ref #27)
27
Part #96001-0604507
Bolt, flange, 6x25 (Ref #28)
28
Part #96300-0602500
