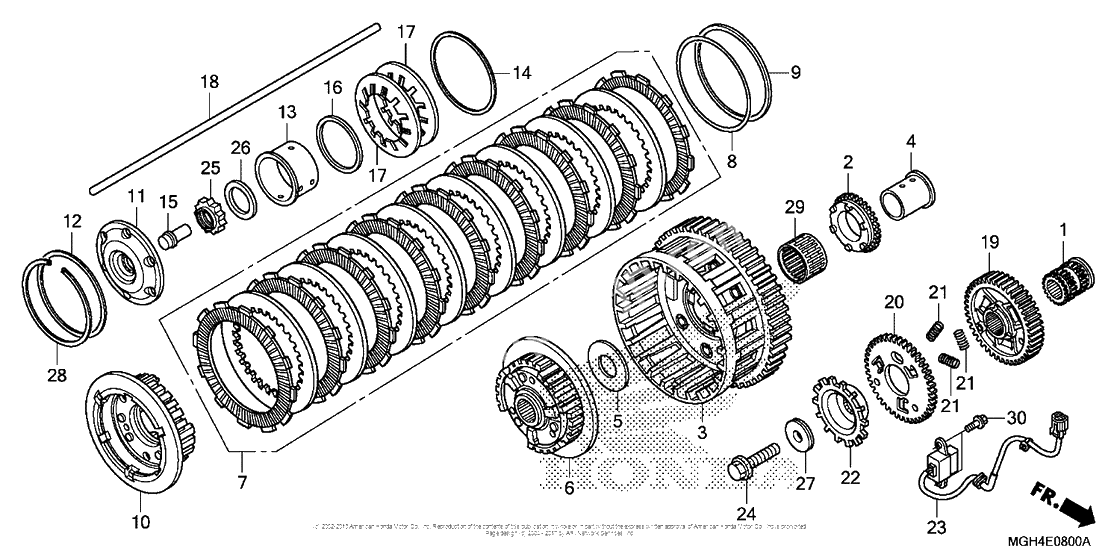

Clutch (1)
Clutch (1)
Sprocket (20t) (Ref #1)
1
Part #14406-MGE-000
Sprocket (30t) (Ref #2)
2
Part #15131-MGE-003
Clutch outer (Ref #3)
3
Part #22100-MGE-000
Guide, clutch (Ref #4)
4
Part #22116-MGE-000
Collar, distance (Ref #5)
5
Part #22117-MEJ-610
Center, clutch (Ref #6)
6
Part #22120-MGE-050
Disk set, clutch (Ref #7)
7
Part #22210-MGE-305
Spring, clutch plate (Ref #8)
8
Part #22325-MEL-000
Seat, judder spring (Ref #9)
9
Part #22326-MGE-000
Plate, clu press (Ref #10)
10
Part #22350-MGE-010
Lifter, clutch (Ref #11)
11
Part #22354-MGE-000
Seat, clutch lifter (Ref #12)
12
Part #22356-MGE-000
Hldr, clutch spring (Ref #13)
13
Part #22365-MGE-010
Seat, clutch spring (Ref #14)
14
Part #22366-MGE-000
Piece, clutch joint (Ref #15)
15
Part #22366-MM5-000
Seat b (Ref #16)
16
Part #22368-MGE-020
Spring, clutch (Ref #17)
17
Part #22401-MGH-640
Rod, clutch lifter (Ref #18)
18
Part #22850-MGE-000
Gear (42t) (Ref #19)
19
Part #23103-MGE-000
Sub-gear (42t) (Ref #20)
20
Part #23104-MGE-000
Пружина (Ref #21)
21
Part #23115-MGE-000
Rotor, pulse (Ref #22)
22
Part #30291-MGE-000
Generator, pulse (Ref #23)
23
Part #30300-MGE-641
Болт (Ref #24)
24
Part #90024-MGE-000
Nut, lock (25mm) (Ref #25)
25
Part #90231-MS2-610
Шайба (Ref #26)
26
Part #90407-MFL-000
Шайба (Ref #27)
27
Part #90408-MGE-000
Circlip (102) (Ref #28)
28
Part #90601-MFL-000
BEARING B, NEEDLE (35X41X27.8) (WHITE) (Ref #29)
29
Part #91102-MFL-881
BOLT (Ref #30)
30
Part #95701-060-140-0
