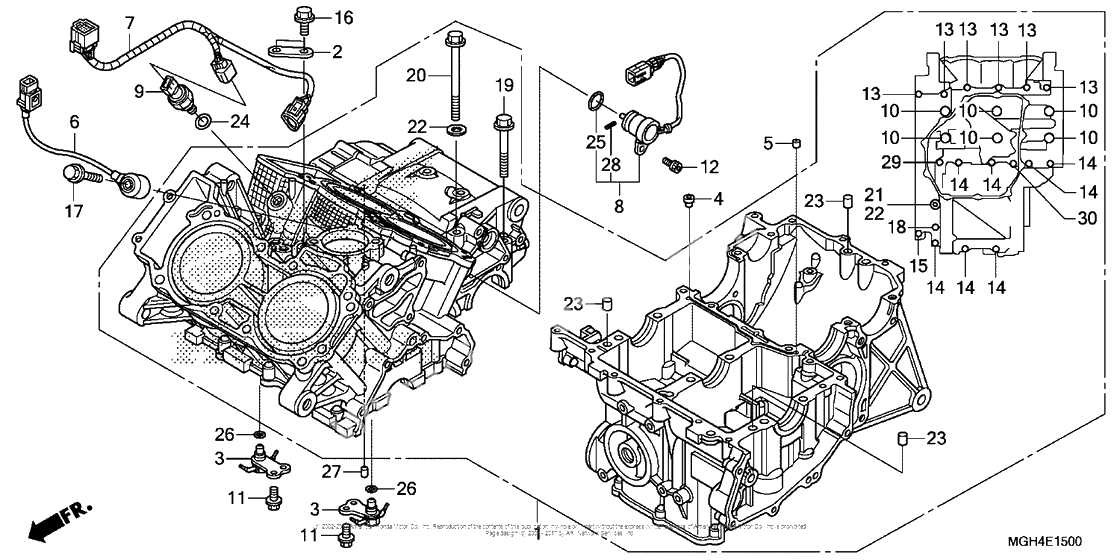

Crankcase (1)
Crankcase (1)
CRANKCASE SET (Ref #1)
1
Part #11000-MGH-640
Bridge, knock sensor (Ref #2)
2
Part #11180-MGE-000
Jet, oil (Ref #3)
3
Part #15310-MGE-000
Ресивер (Ref #4)
4
Part #15515-MGE-000
Orifice c (Ref #5)
5
Part #15517-MGE-000
Sensor, knock (Ref #6)
6
Part #30530-MGE-641
Sub-harness, engine (Ref #7)
7
Part #32111-MGE-640
Switch assy., change (Ref #8)
8
Part #35759-MGH-641
Sensor, oil pressure (Ref #9)
9
Part #37260-MGE-641
Болт (Ref #10)
10
Part #90001-MGE-003
Bolt, knock (6mm) (Ref #11)
11
Part #90011-MFJ-D00
Bolt (6mm) (Ref #12)
12
Part #90011-MGP-000
Болт (Ref #13)
13
Part #90018-MGE-000
Болт (Ref #14)
14
Part #90033-MGE-000
Болт (Ref #15)
15
Part #90034-MGE-000
Болт (Ref #16)
16
Part #90061-MGE-000
Болт (Ref #17)
17
Part #90062-MGE-000
Болт (Ref #18)
18
Part #90063-MGE-000
Болт (Ref #19)
19
Part #90064-MGE-000
Болт (Ref #20)
20
Part #90065-MGE-010
Болт (Ref #21)
21
Part #90066-MGE-010
Шайба (Ref #22)
22
Part #90442-MR1-770
Установочный штифт (Ref #23)
23
Part #90701-MV9-670
Прокладка (Ref #24)
24
Part #91301-MEH-003
Прокладка (Ref #25)
25
Part #91305-KC1-850
Прокладка (Ref #26)
26
Part #91305-MG7-003
Pin b (Ref #27)
27
Part #94302-08100
PIN (Ref #28)
28
Part #94305-20102
Bolt, flange, 8x65 (Ref #29)
29
Part #95701-0806500
Bolt, flange, 8x110 (Ref #30)
30
Part #95701-0811000
