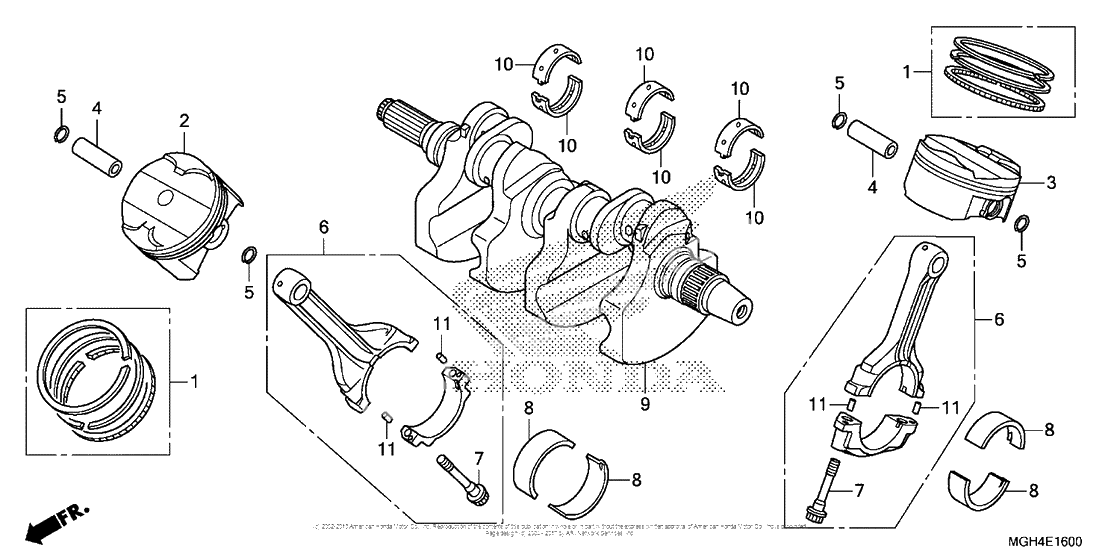

Коленчатый вал & Поршень
Коленчатый вал & Поршень
Ring set (0,50) (Ref #1)
1
Part #13031-MGE-305
Ring set (0,25) (Ref #1)
1
Part #13021-MGE-305
Ring set (std) (Ref #1)
1
Part #13011-MGE-305
Piston, fr. (0.50) (Ref #2)
2
Part #13103-MGE-335
Piston, fr. (0.25) (Ref #2)
2
Part #13102-MGE-335
Комплект поршеня (Ref #2)
2
Part #13101-MGE-030
Piston, rr. (0.50) (Ref #3)
3
Part #13107-MGE-335
Piston, rr. (0.25) (Ref #3)
3
Part #13106-MGE-335
Piston, rr. (std) (Ref #3)
3
Part #13105-MGE-030
Pin, piston (Ref #4)
4
Part #13111-MGE-010
Clip (18mm) (Ref #5)
5
Part #13112-MGE-000
Rod, connecting (Ref #6)
6
Part #13210-MGE-000
Bolt, connecting rod (Ref #7)
7
Part #13213-MGE-003
Bearing b, conn rod (Ref #8)
8
Part #13225-MGE-013
Bearing a, conn rod (Ref #8)
8
Part #13224-MGE-013
Bearing e, conn rod (Ref #8)
8
Part #13228-MGE-013
Bearing d, conn rod (Ref #8)
8
Part #13227-MGE-013
Bearing c, conn rod (Ref #8)
8
Part #13226-MGE-013
Вал коленчатый (Ref #9)
9
Part #13300-MGE-020
Brg e, crankshaft (Ref #10)
10
Part #13317-MGE-013
Brg d, crankshaft (Ref #10)
10
Part #13316-MGE-013
Brg c, crankshaft (Ref #10)
10
Part #13315-MGE-013
Brg b, crankshaft (Ref #10)
10
Part #13314-MGE-013
Bearing a (Ref #10)
10
Part #13313-MGE-013
Pin c (Ref #11)
11
Part #94303-04065
