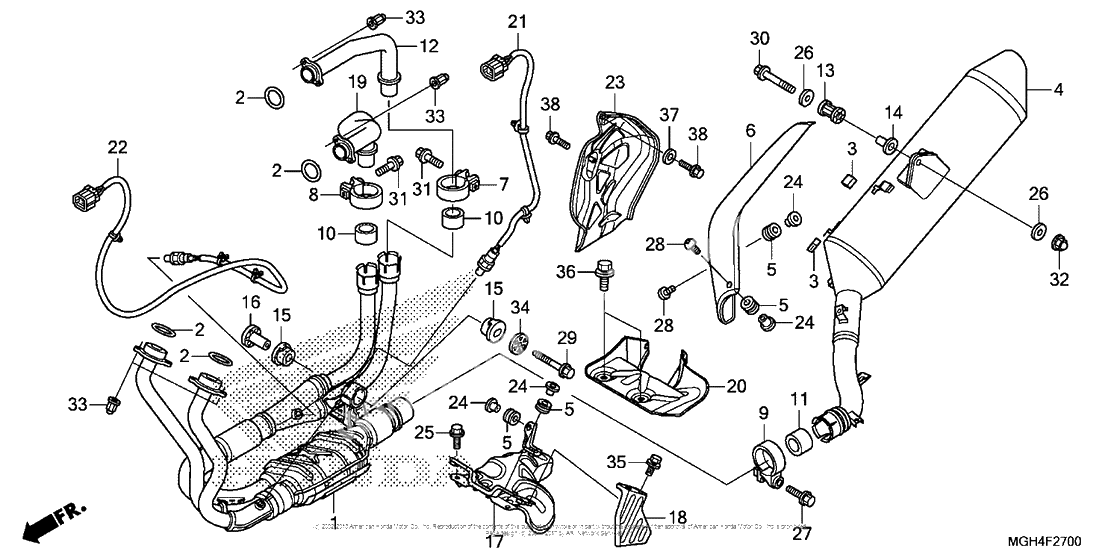

Выхлопная система
Выхлопная система
Pipe, ex. (Ref #1)
1
Part #18150-MGH-A51
Gasket, ex. pipe (Ref #2)
2
Part #18291-MM5-860
Rubber, protector (Ref #3)
3
Part #18293-MN0-000
MUFFLER (Ref #4)
4
Part #18310-MGH-A51
RUBBER (Ref #5)
5
Part #18345-MBT-610
New Genuine Part (Ref #6)
6
Part #18350-MGH-640
Band, ex. pipe (Ref #7)
7
Part #18373-KAB-000
Band, l. ex. pipe (Ref #8)
8
Part #18374-MN1-670
Band, r. rr. muffler (Ref #9)
9
Part #18375-MCF-D30
Gasket, muffler (Ref #10)
10
Part #18391-MB0-891
Packing,muffler (Ref #11)
11
Part #18392-MCF-003
Pipe, r. rr. ex. (Ref #12)
12
Part #18420-MGH-641
Rubber,silencer m (Ref #13)
13
Part #18421-KV3-950
COLLAR (Ref #14)
14
Part #18422-MA6-000
RUBBER (Ref #15)
15
Part #18422-MGE-000
COLLAR (Ref #16)
16
Part #18423-MGE-000
Protector, ex. pipe (Ref #17)
17
Part #18425-MGE-010
Sub-protector (Ref #18)
18
Part #18426-MGE-000
Pipe, l. rr. ex. (Ref #19)
19
Part #18470-MGH-641
Protector, ex, pipe (Ref #20)
20
Part #18475-MGE-000
SENSOR (#1,4) (Ref #21)
21
Part #36531-MGH-H21
SENSOR (#2,3) (Ref #22)
22
Part #36532-MGH-H21
Protector, heat (Ref #23)
23
Part #50606-MGH-640
COLLAR (Ref #24)
24
Part #50609-MCW-D00
Болт (Ref #25)
25
Part #90004-GHB-630
Washer, plain, 8mm (Ref #26)
26
Part #90101-ML0-720
Болт (Ref #27)
27
Part #90103-KCM-620
Screw,pan,6x12 (Ref #28)
28
Part #90106-KRG-000
Болт (Ref #29)
29
Part #90127-MGE-000
BOLT, FLANGE (8X45) (Ref #30)
30
Part #90145-MGH-640
Bolt,flange,8x32 (Ref #31)
31
Part #90216-MM9-000
Nut, cap (8mm) (Ref #32)
32
Part #90301-KBW-940
Nut, cap (6mm) (Ref #33)
33
Part #90304-438-000
Шайба (Ref #34)
34
Part #90505-MGE-000
Bolt-washer, 5x10 (Ref #35)
35
Part #93401-0501000
Bolt-washer (Ref #36)
36
Part #93404-060-120-7
Шайба (Ref #37)
37
Part #94103-06000
Болт (Ref #38)
38
Part #96001-060-200-4
