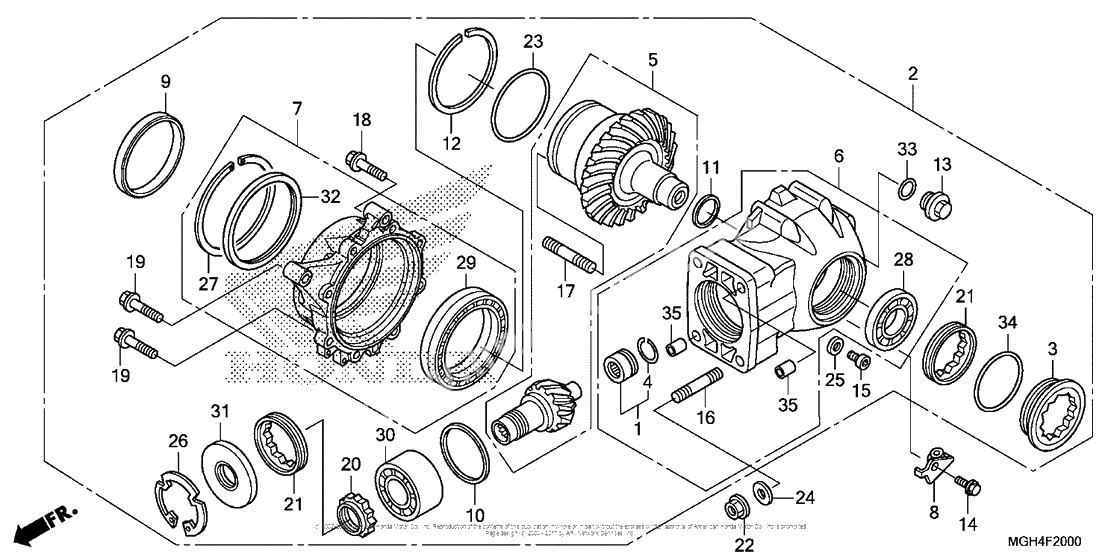

Final driven gear
Final driven gear
Bearing set, needle (Ref #1)
1
Part #06910-MCA-000
Gear assy., final (Ref #2)
2
Part #41300-MGH-640
Bolt, gear case (Ref #3)
3
Part #41302-MGE-020
Кольцо (Ref #4)
4
Part #41305-MB4-770
Gear set, final (Ref #5)
5
Part #41310-MGE-000
Case sub-assy. (Ref #6)
6
Part #41311-MGH-640
Cvr sub, final gear (Ref #7)
7
Part #41320-MGH-640
STAY (Ref #8)
8
Part #41352-MGE-010
COLLAR, GEARSHAFT (Ref #9)
9
Part #41440-MGH-640
Shim g (1,68) (Ref #10)
10
Part #41456-MGE-000
Shim f (1,62) (Ref #10)
10
Part #41455-MGE-000
Shim e (1,56) (Ref #10)
10
Part #41454-MGE-000
Shim d (1,50) (Ref #10)
10
Part #41453-MGE-000
Shim c (1,44) (Ref #10)
10
Part #41452-MGE-000
Shim b (1,38) (Ref #10)
10
Part #41451-MGE-000
Shim a (1,32) (Ref #10)
10
Part #41450-MGE-000
Shim s,ring gear (Ref #11)
11
Part #41507-MGE-000
Shim m (2,09) (Ref #11)
11
Part #41522-MGE-000
Shim r,ring gear (Ref #11)
11
Part #41506-MGE-000
Shim l (2,06) (Ref #11)
11
Part #41521-MGE-000
Shim q,ring gear (Ref #11)
11
Part #41505-MGE-000
Shim k (2,03) (Ref #11)
11
Part #41520-MGE-000
Shim j (2,00) (Ref #11)
11
Part #41519-MGE-000
Shim i (1,97) (Ref #11)
11
Part #41518-MGE-000
Shim h (1,94) (Ref #11)
11
Part #41517-MGE-000
Shim g (1,91) (Ref #11)
11
Part #41516-MGE-000
Shim f (1,88) (Ref #11)
11
Part #41515-MGE-000
Shim e (1,85) (Ref #11)
11
Part #41514-MGE-000
Shim d (1,82) (Ref #11)
11
Part #41513-MGE-000
Shim c (1,79) (Ref #11)
11
Part #41512-MGE-000
Shim b (1,76) (Ref #11)
11
Part #41511-MGE-000
Shim a (1,73) (Ref #11)
11
Part #41510-MGE-000
Shim p (0,45) (Ref #11)
11
Part #41525-MGE-000
Shim u,ring gear (Ref #11)
11
Part #41509-MGE-000
Shim o (2,15) (Ref #11)
11
Part #41524-MGE-000
Shim t,ring gear (Ref #11)
11
Part #41508-MGE-000
Shim n (2,12) (Ref #11)
11
Part #41523-MGE-000
Shim h, ring gear (Ref #12)
12
Part #41537-MCA-000
Shim f, ring gear (Ref #12)
12
Part #41535-MCA-000
Shim e, ring gear (Ref #12)
12
Part #41534-MCA-000
Shim n, ring gear (Ref #12)
12
Part #41543-MCA-000
Shim d, ring gear (Ref #12)
12
Part #41533-MCA-000
Shim b, ring gear (Ref #12)
12
Part #41531-MCA-000
Shim c, ring gear (Ref #12)
12
Part #41532-MCA-000
Shim a, ring gear (Ref #12)
12
Part #41530-MCA-000
Shim s,ring gear (Ref #12)
12
Part #41547-MCA-000
Shim r,ring gear (Ref #12)
12
Part #41546-MCA-000
Shim l, ring gear (Ref #12)
12
Part #41541-MCA-000
Shim m, ring gear (Ref #12)
12
Part #41542-MCA-000
Shim k, ring gear (Ref #12)
12
Part #41540-MCA-000
Shim q,ring gear (Ref #12)
12
Part #41545-MCA-000
Shim j, ring gear (Ref #12)
12
Part #41539-MCA-000
Shim i, ring gear (Ref #12)
12
Part #41538-MCA-000
Shim g, ring gear (Ref #12)
12
Part #41536-MCA-000
CAP (Ref #13)
13
Part #41530-MGE-000
BOLT, FLANGE (6X12) (Ref #14)
14
Part #90013-GHB-610
Bolt, socket (8x11) (Ref #15)
15
Part #90109-ME5-770
Болт заклепка (Ref #16)
16
Part #90124-MGE-300
Болт заклепка (Ref #17)
17
Part #90125-MCA-300
Болт (Ref #18)
18
Part #90133-MCA-000
Болт (Ref #19)
19
Part #90134-MGE-000
Nut, lock (35mm) (Ref #20)
20
Part #90241-MCH-000
Nut, lock (75mm) (Ref #21)
21
Part #90242-MCH-000
Nut, flange (12mm) (Ref #22)
22
Part #90309-375-003
Прокладка (Ref #23)
23
Part #90351-MCA-003
Шайба (Ref #24)
24
Part #90440-GT4-970
PACKING (Ref #25)
25
Part #90471-580-000
Кольцо (Ref #26)
26
Part #90653-MGE-000
Circlip (124,5mm) (Ref #27)
27
Part #90655-MGE-000
Bearing (6207) (Ref #28)
28
Part #91002-KCW-J11
Bearing (100x125x26) (Ref #29)
29
Part #91051-MCA-003
Bearing (de07) (Ref #30)
30
Part #91052-MGE-003
Oil seal (32x77x6) (Ref #31)
31
Part #91261-MGE-003
Oil seal (110x124x7) (Ref #32)
32
Part #91265-MGE-013
Прокладка (Ref #33)
33
Part #91352-MGE-003
Прокладка (Ref #34)
34
Part #91353-MGE-003
Dowel pin (Ref #35)
35
Part #94301-14200
