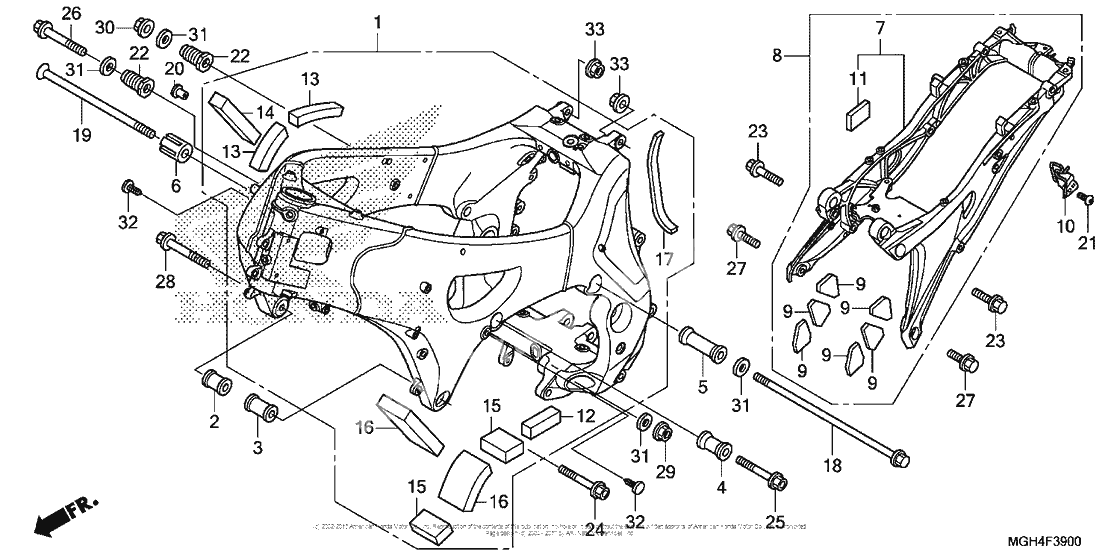

Рама
Рама
New Genuine Part (Ref #1)
1
Part #50010-MGE-701ZD
Collar a, r, eng hgr (Ref #2)
2
Part #50191-MGE-000
Collar a, l, eng hgr (Ref #3)
3
Part #50192-MGE-000
Collar b, eng hgr (Ref #4)
4
Part #50193-MGE-000
Collar c, eng hgr (Ref #5)
5
Part #50194-MGE-000
Collar d, eng hgr (Ref #6)
6
Part #50195-MGE-000
New Genuine Part (Ref #7)
7
Part #50200-MGH-640ZC
Holder, helmet (Ref #10)
10
Part #50206-MGH-640
Mat f (Ref #11)
11
Part #64314-MCT-770
Mat, taillight (Ref #12)
12
Part #64470-GEY-300
Urethane a, r, (Ref #13)
13
Part #83530-MGE-000
Urethane b, r, (Ref #14)
14
Part #83550-MGE-000
Urethane a, l, (Ref #15)
15
Part #83630-MGE-000
Urethane b, l, (Ref #16)
16
Part #83635-MGE-000
New Genuine Part (Ref #17)
17
Part #83640-MGE-700
Bolt, flg (12x344) (Ref #18)
18
Part #90101-MGE-000
Bolt (12x303) (Ref #19)
19
Part #90102-MGE-000
Гайка (Ref #20)
20
Part #90111-KW3-003
Screw, pan (6x14) (Ref #21)
21
Part #90118-MBV-000
Bolt (18x1,5x28,5) (Ref #22)
22
Part #90151-MGE-000
Болт (Ref #23)
23
Part #90160-MGE-000
Болт (Ref #24)
24
Part #90161-MGH-640
Болт (Ref #25)
25
Part #90162-MGH-640
Болт (Ref #26)
26
Part #90163-MGH-640
Болт (Ref #27)
27
Part #90164-MGE-000
Болт (Ref #28)
28
Part #90166-MGH-640
Nut, flange (12mm) (Ref #29)
29
Part #90371-MGE-000
Nut, flange (12mm) (Ref #30)
30
Part #90372-MGE-000
Washer, plain, 12mm (Ref #31)
31
Part #90559-ZW1-000
ПИСТОН (Ref #32)
32
Part #90656-MGH-641
Гайка (Ref #33)
33
Part #94050-10000
