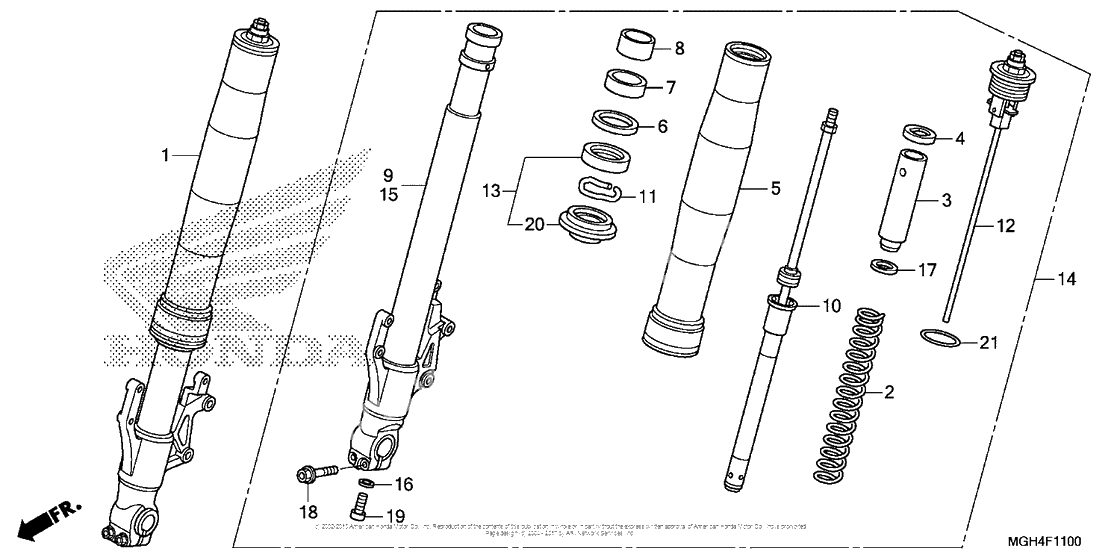

Вилка передней оси
Вилка передней оси
Fork assy., r. fr. (Ref #1)
1
Part #51400-MGH-305
Spring, fr. fork (Ref #2)
2
Part #51401-MGH-641
Collar, spring (Ref #3)
3
Part #51403-MGH-641
Seat, spring collar (Ref #4)
4
Part #51406-MGE-003
Tube (outer) (Ref #5)
5
Part #51410-MGH-D31
Ring, back-up (Ref #6)
6
Part #51412-MGE-003
Bush, guide (Ref #7)
7
Part #51414-MGE-003
Bush, slider (Ref #8)
8
Part #51415-MGE-003
Pipe comp, R, slide (Ref #9)
9
Part #51425-MGH-641
Damper, fr. (Ref #10)
10
Part #51430-MGH-641
Ring, oil seal stop (Ref #11)
11
Part #51447-KZ4-711
Bolt, fr. fork (Ref #12)
12
Part #51450-MGE-003
Seal set, fr, fork (Ref #13)
13
Part #51490-MGE-003
Fork assy., l. fr. (Ref #14)
14
Part #51500-MGH-305
Pipe comp, L, slide (Ref #15)
15
Part #51525-MGH-641
Washer, oil bolt (Ref #16)
16
Part #52442-KA3-731
Шайба (Ref #17)
17
Part #52442-MGE-003
Болт (Ref #18)
18
Part #90107-MGE-000
Bolt, socket (10x25) (Ref #19)
19
Part #90116-KK0-004
DUST SEAL (Ref #20)
20
Part #91254-MGE-003
Прокладка (Ref #21)
21
Part #91258-KZ4-711
