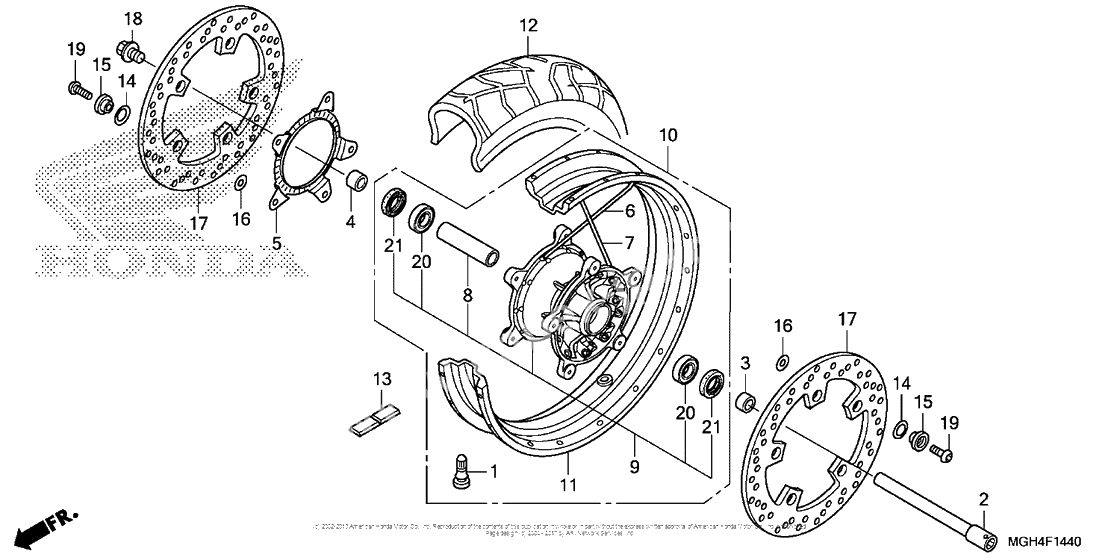

Передние колесо
Передние колесо
Клапан, обод колеса (Ref #1)
1
Part #42753-ML7-003
New Genuine Part (Ref #2)
2
Part #44301-MGH-640
Collar, r. fr. (Ref #3)
3
Part #44311-MBW-E10
New Genuine Part (Ref #4)
4
Part #44311-MGH-640
Ring, fr. pulser (Ref #5)
5
Part #44515-MGH-640
Spoke set a, fr. (Ref #6)
6
Part #44605-MGH-640
Spoke set b, fr. (Ref #7)
7
Part #44606-MGH-640
New Genuine Part (Ref #8)
8
Part #44620-MGH-640
Hub sub-assy., fr. (Ref #9)
9
Part #44635-MGH-640
Wheel sub-assy., fr. (Ref #10)
10
Part #44650-MGH-640
Rim, fr. wheel (Ref #11)
11
Part #44701-MGH-641
Tire, fr. (Ref #12)
12
Part #44711-MGH-643
WEIGHT (10G) (Ref #13)
13
Part #44721-MGH-H21
WEIGHT (15G) (Ref #13)
13
Part #44722-MGH-H21
WEIGHT (20G) (Ref #13)
13
Part #44723-MGH-H21
SPRING, FR. DISK (Ref #14)
14
Part #45223-MGH-H21
New Genuine Part (Ref #15)
15
Part #45225-MGC-000
New Genuine Part (Ref #16)
16
Part #45226-MGC-000
Disk, fr. brake (Ref #17)
17
Part #45251-MGH-641
Bolt, fr. axle (Ref #18)
18
Part #90105-MBT-610
New Genuine Part (Ref #19)
19
Part #90105-MGC-000
Bearing (6204uu) (Ref #20)
20
Part #91052-MAE-004
Oil seal (28x47.2x7) (Ref #21)
21
Part #91252-MC4-013
