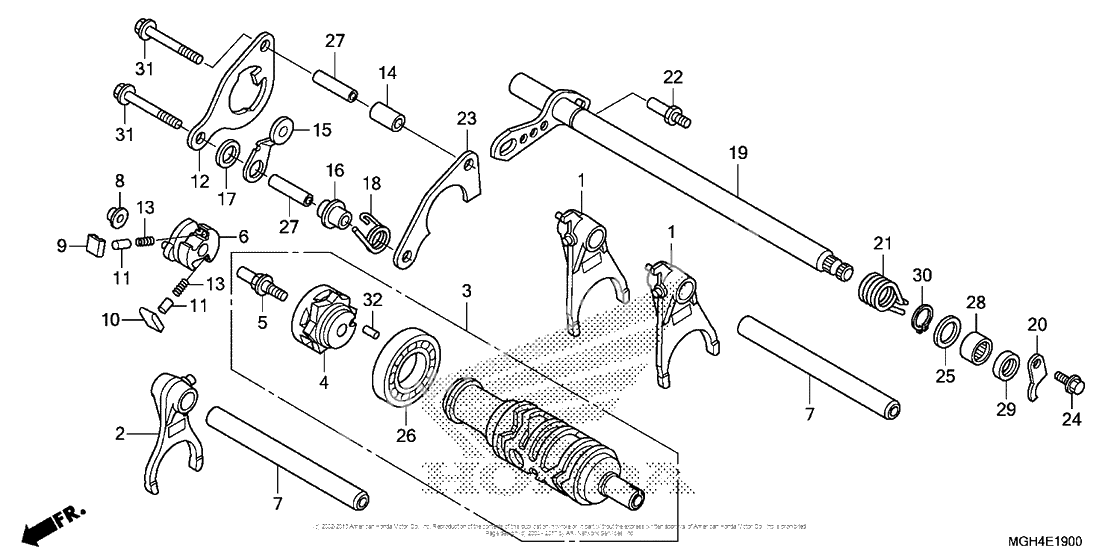

Gearshift drum (1)
Gearshift drum (1)
Fork, gearshift (Ref #1)
1
Part #24211-MGE-000
Вилка (Ref #2)
2
Part #24212-MGE-000
Drum, gearshift (Ref #3)
3
Part #24310-MGH-640
Center, shift drum (Ref #4)
4
Part #24312-MGE-003
Pin, shifter (Ref #5)
5
Part #24315-HA0-000
Shifter, drum (Ref #6)
6
Part #24321-KT8-030
SHAFT (Ref #7)
7
Part #24321-MGE-000
Collar, shifter (Ref #8)
8
Part #24322-MM4-000
Pawl a, ratchet (Ref #9)
9
Part #24324-KA3-711
Pawl b, ratchet (Ref #10)
10
Part #24325-KA3-711
Plunger, pawl (Ref #11)
11
Part #24326-KBH-901
Plate, change guide (Ref #12)
12
Part #24328-MGE-000
Spring, pawl plunger (Ref #13)
13
Part #24329-KA3-740
COLLAR (Ref #14)
14
Part #24329-KT8-000
Stopper, drum (Ref #15)
15
Part #24430-MGE-000
Collar, drum stopper (Ref #16)
16
Part #24434-MGE-000
COLLAR (Ref #17)
17
Part #24435-MGE-000
Пружина (Ref #18)
18
Part #24436-MGE-000
Spindle, gearshift (Ref #19)
19
Part #24610-MGE-010
Plate, spindle (Ref #20)
20
Part #24612-MAL-600
Spring, shift return (Ref #21)
21
Part #24651-MAE-000
PIN (Ref #22)
22
Part #24652-035-000
PLATE (Ref #23)
23
Part #24655-MGE-000
Болт (Ref #24)
24
Part #90031-MGE-000
Washer, 14mm (Ref #25)
25
Part #90451-155-000
Bearing (16005) (Ref #26)
26
Part #91008-374-003
Установочный штифт (Ref #27)
27
Part #91104-KT7-000
Bearing (14x22x16) (Ref #28)
28
Part #91106-MCF-003
Oil seal, 14x22x5 (Ref #29)
29
Part #91203-KK3-830
Circlip (Ref #30)
30
Part #94510-14000
BOLT (Ref #31)
31
Part #95701-060-450-7
Roller, 4x8 (Ref #32)
32
Part #9622040080
